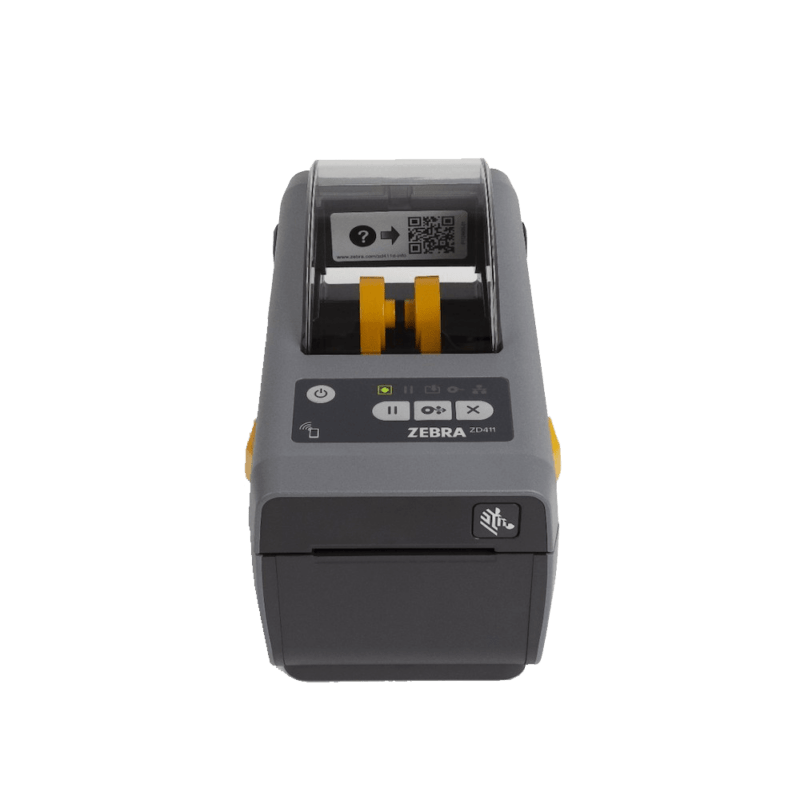

Zebra ZD411 Desktop Printer
RFQ
- Print methods: Thermal Transfer or Direct Thermal
- USB 2.0, USB Host
- Real Time Clock (RTC)
- Open Accessโข for easy media loading
- Dual-wall frame construction
- 5 status icon, 3 button user interface
- PDF Direct
- ENERGY STARยฎ certified
RFQ
Secure Payment
Dimensions:
ZD411d:
8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H
ZD411t:
9.56 in. L x 5.46 in. W x 6.66 in. H
242.9 mm L x 138.7 mm W x 169.2 mm H
Weight:
ZD411d: 1.0 kg
ZD411t: 1.629 kg
Operating System: Link-OSยฎ printer operating system
Resolution:
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory: 512 MB Flash; 256MB DDR3 SDRAM
Maximum Print Width:
2.2 in./56 mm for 203 dpi
2.13 in./54 mm for 300 dpi
Maximum Print Speed:
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors:
Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Media Sensors: ZPL II; EPL 2; XML; ZBI; PDF Direct
Label Length:
Minimum: 0.25 in./6.35 mm
Maximum: 39.0 in./991 mm
Media Width:
Minimum 0.585 in./15 mm
Maximum: 2.25 in./57 mm
Media Roll Size:
Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in./12.7 mm and
1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness:ย 0.0024 in./0.06 mm min; 0.0075 in./0.1905 mm max. (tear-off mode only)
Media Types:
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter: 1.34 in./34 mm (74 m)
Ribbon Standard Length:ย 243 ft./74 m
Ribbon Ratio: 1:1 ribbon to media
Ribbon Width: 1.3 in./33 mm - 2.24 in./58 mm
Ribbon Core I.D.: 0.5 in./12.7 mm
Operating Temp.: 40ยฐ to 105ยฐ F/4.4ยฐ to 41ยฐ C
Storage Temp.: -40ยฐ to 140ยฐ F/-40ยฐ to 60ยฐ C
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Electrical:
Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
Barcode Ratios: 2:1 and 3:1
1D Barcodes:
Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard
2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes:
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics:
16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
N/A
Healthcare:
Our healthcare direct thermal model includes white color scheme, healthcare-compliant power supply, disinfectant-ready, easy-to-clean plastics and sealed button interface, and UV-resistant housing
Media Handling:
Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable)
Cutter (field installable)
Communications:
Field installable Ethernet 10/100, Serial RS-232 auto-sensing, wireless dual radio โ 802.11ac Wi-Fi and Bluetooth Classic 4.1
Battery:ย
Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Real Time Clock:
Real time clock included as standard on network connected models
Keyboard Display Unit: ZKDU keyboard display unit for stand-alone printing solution
Mounting Adapter Bracket:ย Enable printer to be mounted in same location as LP/TLP2824 Plus printer
warranty:
2 Year Standard Warranty
