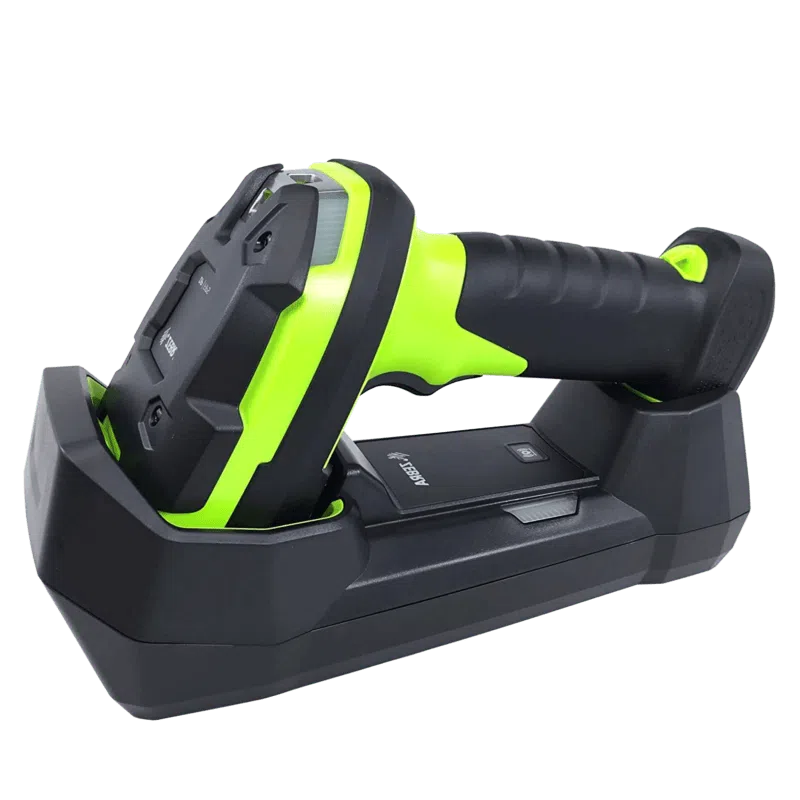

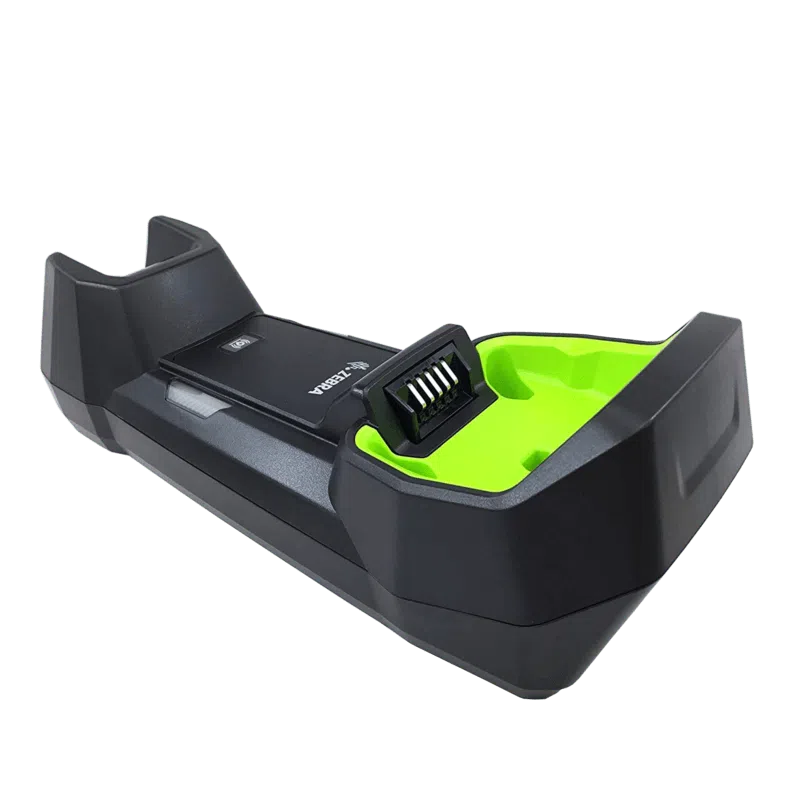

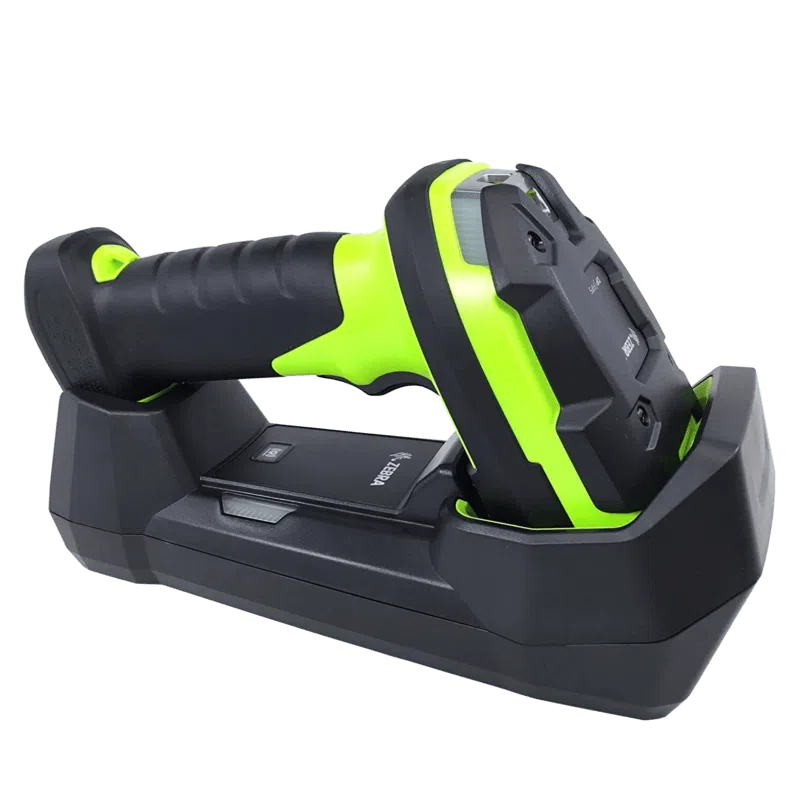

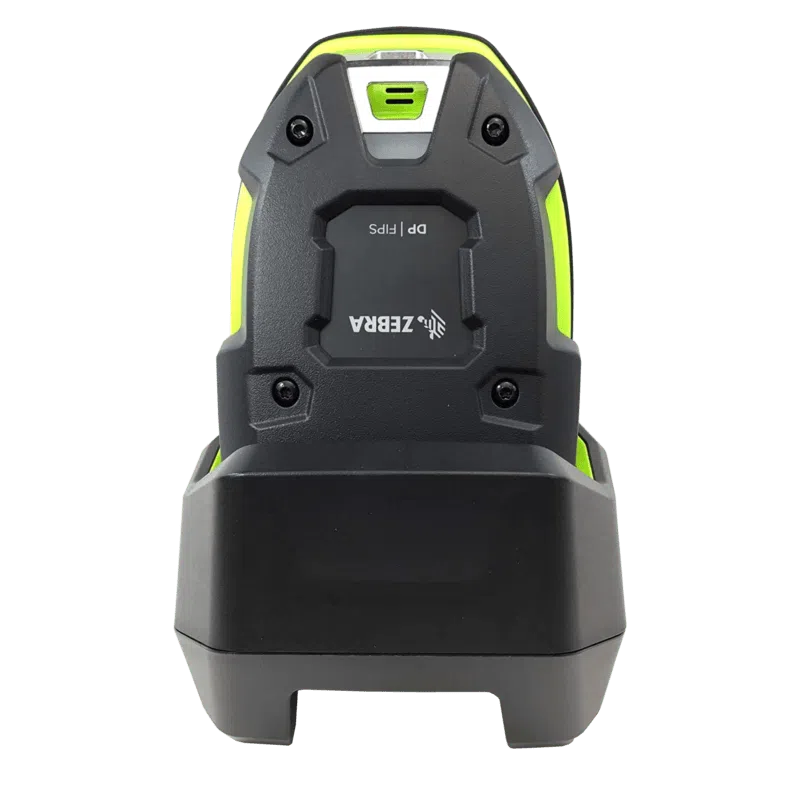

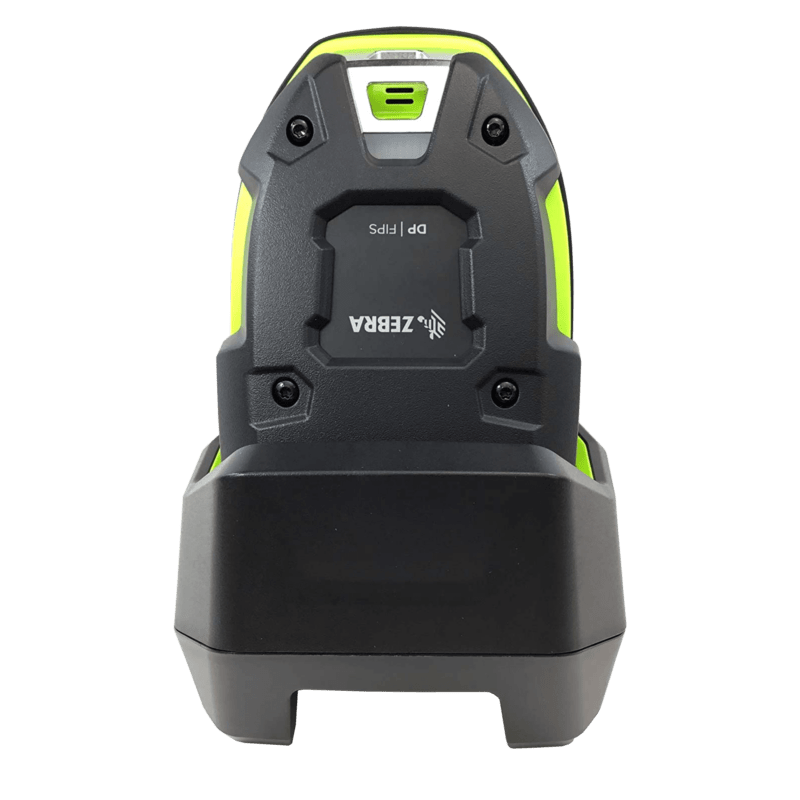

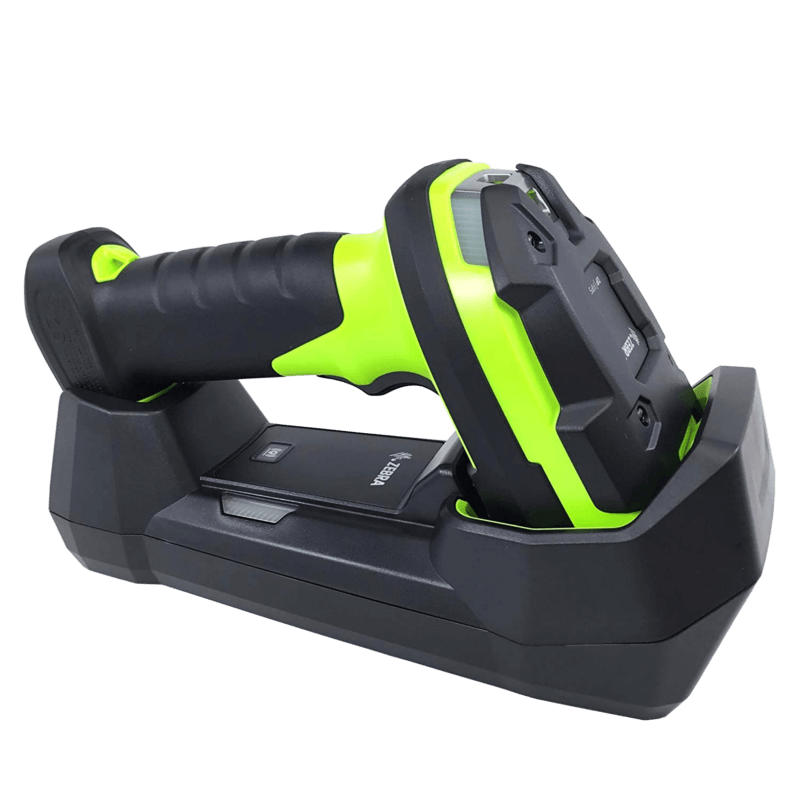

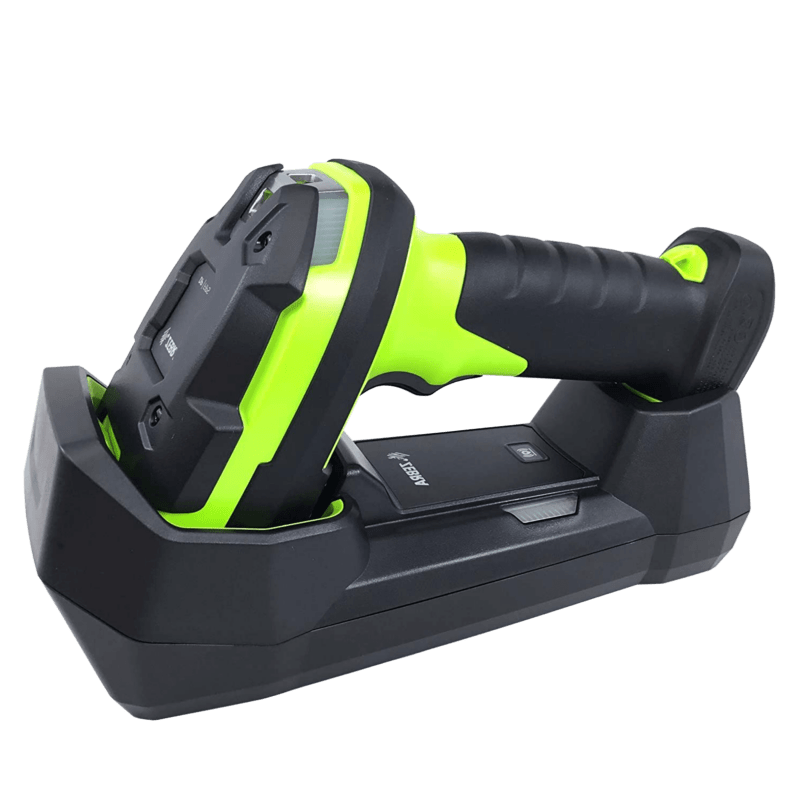

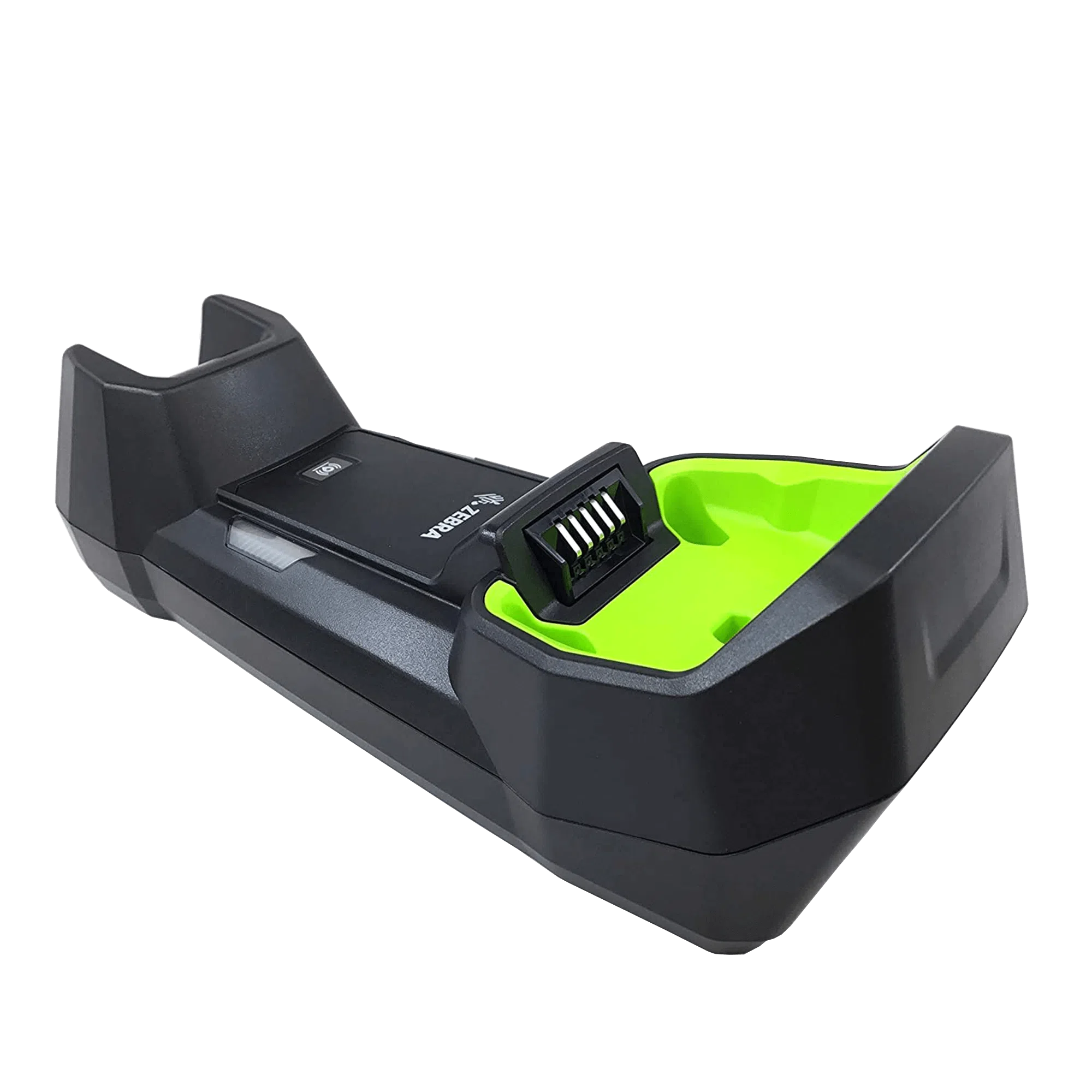

Zebra DS3678 Standard Range Rugged Scanner with Cradle Kit
RFQ
- 123 Scan
- Remote Management
- Scan-To-Connect
- Scanner Control Application
- Virtual Tether
- 1D/2D Capabilities
- Power Precision+ 3,100mAh Li-ion rechargeable battery
- Withstands 8-foot/2-4 meter drops to concrete
- IP65 and IP67
RFQ
Secure Payment
Dimensions:
Corded: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.6 cm W x 14.2 cm D
Weight:
Cordless: 14.34 oz./407 g
Display:
N/A
Operating System:
N/A
CPU:
N/A
RAM & ROM:
N/A
Battery:
Power Precision+ 3100 mAh Li-Ion rechargeable battery
Input Voltage Range:
Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max
Network:
Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third-party conversion equipment.
Bluetooth:
Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
Data Rate:
3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range:
Direct line of sight in open air: Class 1: Minimum
300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
NFC:
N/A
WiFi:
N/A
GPS:
N/A
VoLTE:
N/A
I/O:
N/A
IP Rating:
IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65
Drop Certification:
DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
Tumble Specification: 7500 3.3 ft./1.0 m tumbles
Operating Temperature:
Cordless: -4° F to 122° F/-20° C to 50° C
Storage Temp.: -40° F to 158° F/-40° C to 70° C
Humidity:
5% to 95% non-condensing
Optional:
N/A
Biometrics:
N/A
UHF / RFID:
N/A
Color: Industrial Green
Supported Host Interfaces:
USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus
TCP & Std TCP/IP
User Indicators: Direct decode indicator; LEDs; beeper; vibration
Scans per Full Charge: 100,000+
Image Capture: Basic
Illumination: One (1) 660 nm LED
Aimer: 610 nm LED
Imager Field of View: Horizontal: 42°, Vertical: 28°
Image Sensor: 1,280 x 800 pixels
Minimum Print Contrast: 15% minimum reflective difference
Skew/Pitch/Roll:
Skew: ± 60°
Pitch: ± 60°
Roll: ± 360°
Decode Capabilities:
1D:
Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma)
2D:
PDF417, Micro PDF417, Composite Codes, TLC-39,
Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,
Chinese Sensible (Han Xin), Postal Codes
Digimarc: Digital watermark technology
IUID Support:
Supports IUID parsing, the ability to read and Separate IUID fields per application requirements
User Environment:
ESD:
Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Decode Ranges (Typical):
Symbology/Resolution:
Code 128: 5 mil:1.3-6.7 in./3.3-17 cm
Code 128: 20 mil:2.8-28.0 in./7.1-71.1 cm
Code 128: 40 mil:1.7-60 in./4.4-152.4 cm
Data matrix: 7.5 mil:1.9-6.0 in./4.8-15.2 cm
Data matrix: 10.0 mil: 1.4-8.6 in./3.5-21.8 cm
Regulatory:
Environmental: RoHS EN 50581: 2012
Electrical Safety:
EU Safety: EN 60950-1: 2006 + A11: 2009 + A1:
2010 + A12: 2011 + AC 2011 + A2: 2013
International Safety: IEC 60950-1: 2005 + A1:
2009 + A2: 2013
US/Canada Safety: UL 60950-1, second edition,
CAN/CSA-C22.2 No. 60950-1-07
LED Safety:
International LED Safety: IEC 62471: 2006 (Ed.1.0);
EN 62471: 2008 (LED)
EMI/RFI:
IT Emissions: EN 55022: 2010/AC: 2011 (Class B)
IT Immunity: EN 55024: 2010
Heavy Industrial: EN 61000-6-2: 2005/AC:2005
Harmonic Current Emissions: EN 61000-3-2: 2006
+ A1: 2009 + A2: 2009 (Class B)
Voltage Fluctuation and Flicker:
EN 61000-3-3: 2013
Medical Electrical Equipment: EN 60601-1-2:
2007/AC: 2010, IEC 60601-1-2: 2007 (Modified)
Radio Frequency Devices: 47 CFR Part 15, Subpart
B, Class B
Digital Apparatus: ICES-003 Issue 5, Class B
Utilities and Maintenance
123Scan:
Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports.
Scanner SDK:
Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.
Scanner Management Service (SMS):
Remotely manages your Zebra scanner and queries its asset information.
Warranty:
1 Year Standard Warranty
1x Zebra DS3678 Rugged Scanner
1x Power Adapter
1x Power Cable
1x DC Line Cord
1x AC Line Cordz
1x User Manual
