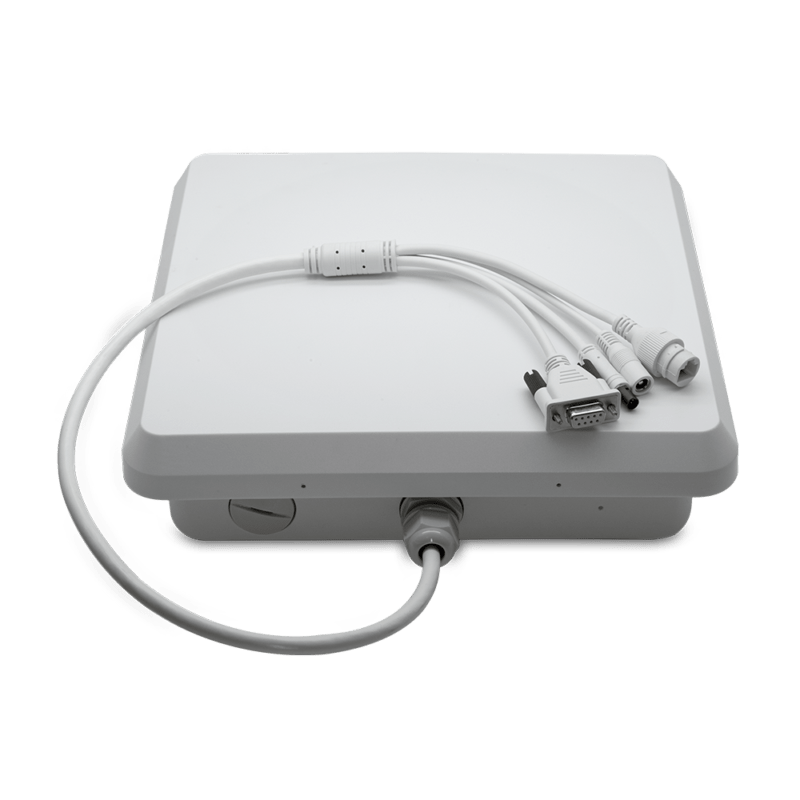

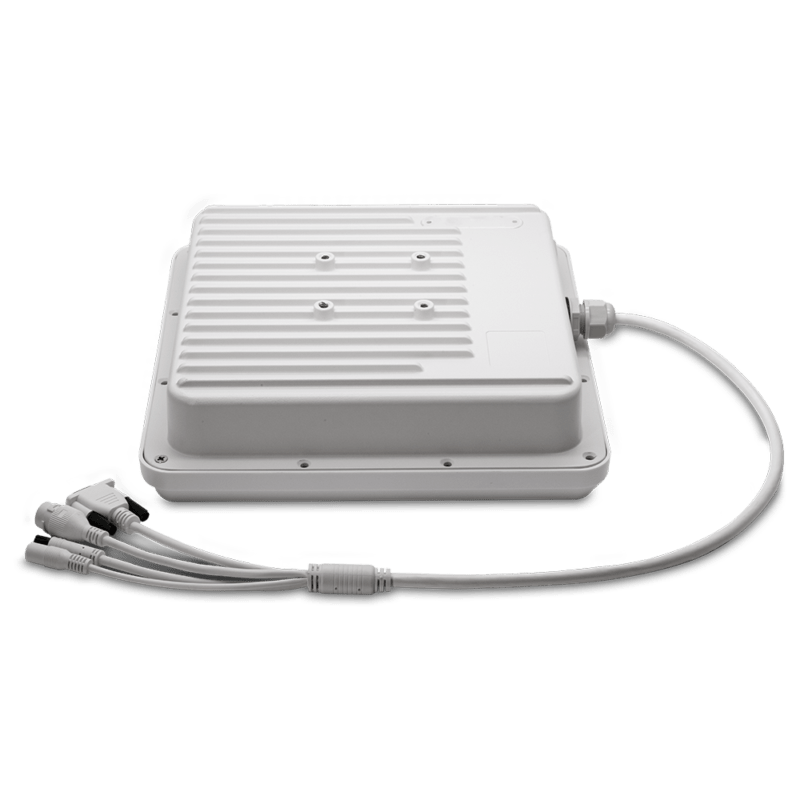

Chainway UR1A Intergrated RFID Reader
RFQ
- UHF RFID (Impinj E710)
- DC 12V Power Supply
- Supports RS232/RJ45
- IP65 Sealing
RFQ
Dimensions:
270 x 270 x 77mm / 10.63 x 10.63 x 3.03in (9dBi)
130 x 130 x 60mm / 5.12 x 5.12 x 2.36in (6dBi)
Weight:
2230g
Display:
N/A
Operating System:
N/A
CPU:
N/A
RAM & ROM:
N/A
Network:
Antenna 1
Frequency:Â 865-868MHz / 920-925MHz / 902-928MHz
Polarization Mode :Â RHCP (Right-handed Circular Polarization)
Gain :Â 9dBi
Horizontal Angle : 60°
Vertical Angle : 55°
VSWR : ≤ 1.3
FBR :Â 17dB
Characteristic Impedance : 50Ω
Maximum Input Power :Â 20w
Lightning Protection :Â DC Ground
Antenna Port :Â SMA Male
Antenna 2
Polarization Mode RHCP (Right-handed Circular Polarization)
Frequency 865-868MHz / 920-925MHz / 902-928MHz
Gain 6dBi
Horizontal Angle 105°
Vertical Angle 95°
VSWR ≤ 1.3
FBR ≥ 20dB
Characteristic Impedance 50Ω
Maximum Input Power 100w
Lightning Protection DC Ground
Antenna Port SMA Male
NFC:
N/A
GPS:
N/A
VoLTE:
N/A
IP Rating:
IP65 Sealing
Drop Certification:
N/A
Operating Temperature:
Operating Temp. -25°C to 65°C
Storage Temp. -40°C to 85°C
Humidity:
10%- 95% Condensing
Optional:
N/A
Biometrics:
N/A
UHF / RFID:
Engine :Â CM710-1 based on Impinj E710 chip
Impinj Gen2X :Â Supported
Protocol :Â EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Output Power :Â 1W (30dBm, support +5~+30dBm adjustable)
Optional 2W (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)
Output Power Precision : +/- 1dB
Output Power Flatness :Â +/- 0.2dB
Receive Sensitivity :Â < -84dBm
RSSI :Â Support
Ambient Temp Monitor :Â Support
Fastest Read Rate :Â Up to 950 tags/s
N/A
N/A
N/A
Warranty​:
12 Months Standard Warranty
- Extended Warranty Available
Chainway UR1A Integrated UHF Reader
12V 2A Power Adapter
User manual
