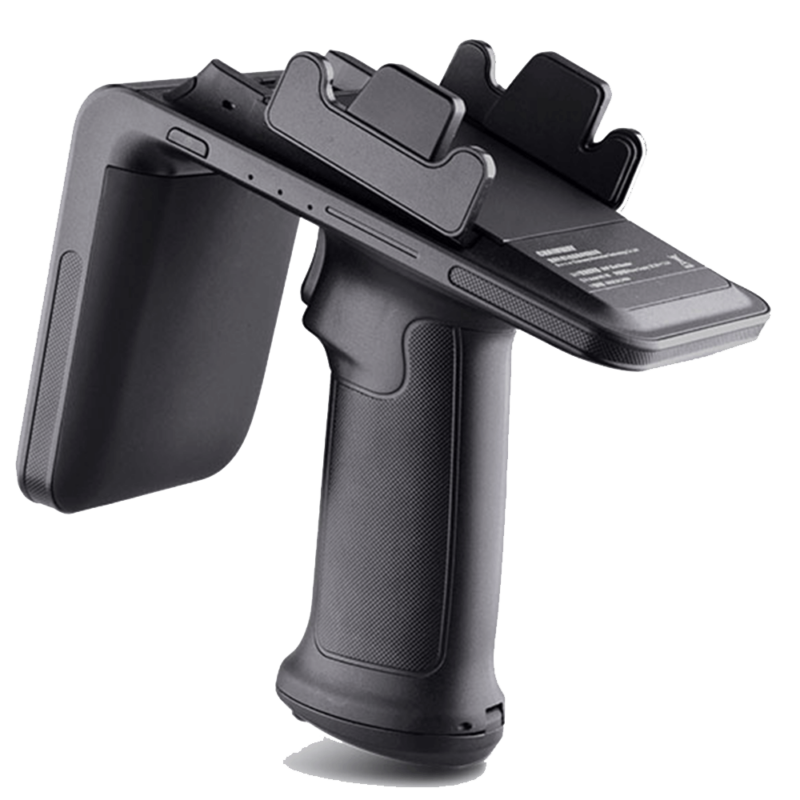

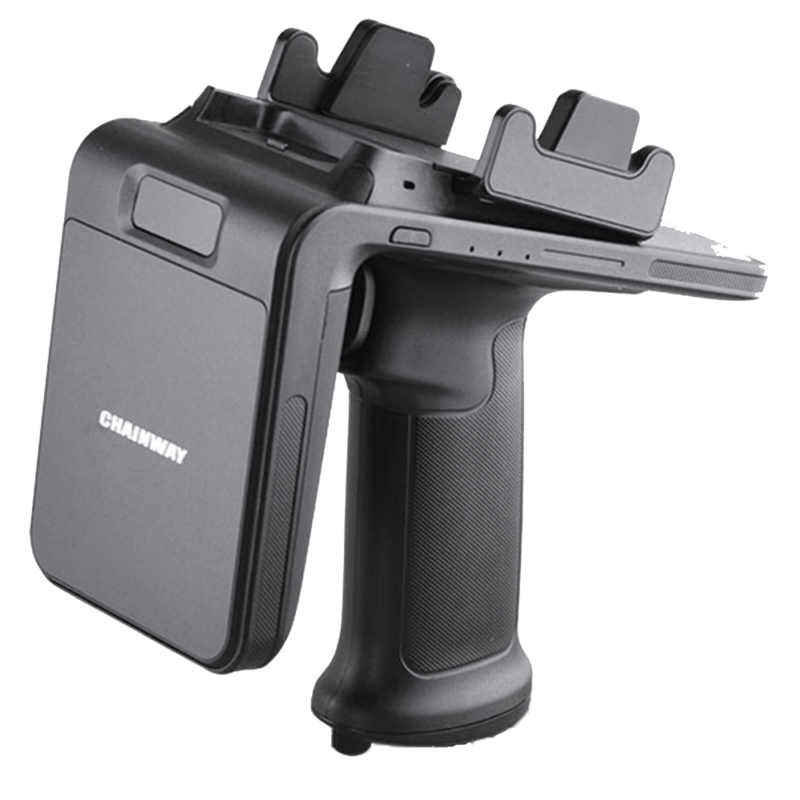

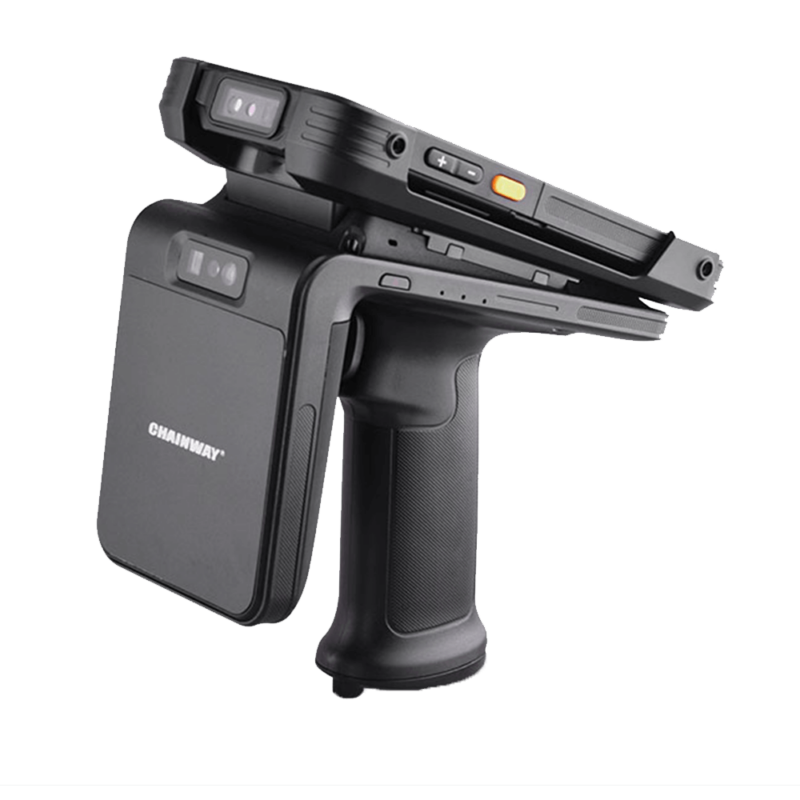

Chainway R6 UHF RFID Handheld Sled Reader
RFQ
- Android/IOS Support
- 5200mAh Battery
- Bluetooth 4.0
- IP54
- UHF RFID
- 1D/2D Barcode Scanning (Optional)
RFQ
Out of stock
Secure Payment
Dimensions:
151 x 76 x 132 mm
Weight:
Sled Reader: 438 g
Display:
N/A
Operating System:
N/A
CPU:
Cortex-M3
72MHz
RAM & ROM:
N/A
Battery:
5200 mAh removable battery
Standby: over 70 hours (keeping bluetooth connected)
Continuous use: up to 2.5 hours (UHF reading: 400 tags)
Charging time: 4-5 hours (with standard adaptor and USB cable)
Network:
N/A
Bluetooth:
5.0, BLE
NFC:
N/A
WiFi:
N/A
GPS:
N/A
VoLTE:
N/A
I/O:
USB 3.0 Type-C
IP Rating:
IP54 per IEC sealing specifications
Drop Certification:
Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Operating Temperature:
-4℉~+122℉ / -20℃~+50℃
Storage Temp.: -40℉~+158℉ / -40℃~+70℃
Humidity:
5%RH – 95%RH non condensing
Optional:
Barcode Scanning
2D Imager Scanner: SE2707
1D Symbologies:
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
2D Symbologies:
PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Biometrics:
N/A
UHF / RFID:
Engine:
CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000
Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
Protocol: EPC C1 GEN2 / ISO18000-6C
Antenna: Circular Polarized Antenna (4dBic)
Power:
1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate: 900+ tags/sec
Max Read Range: Up to 18m (open outdoors, Impinj MR6 tag)
Note: Ranges and rates depend on tags and environment
Developing Environment
SDK: Android / iOS
Language: Java / Objective-C
Tool: Android Studio / Xcode
Buzzer: Support
Interfaces: USB 3.0 Type-C
Indicator LED: Power, Work, Bluetooth

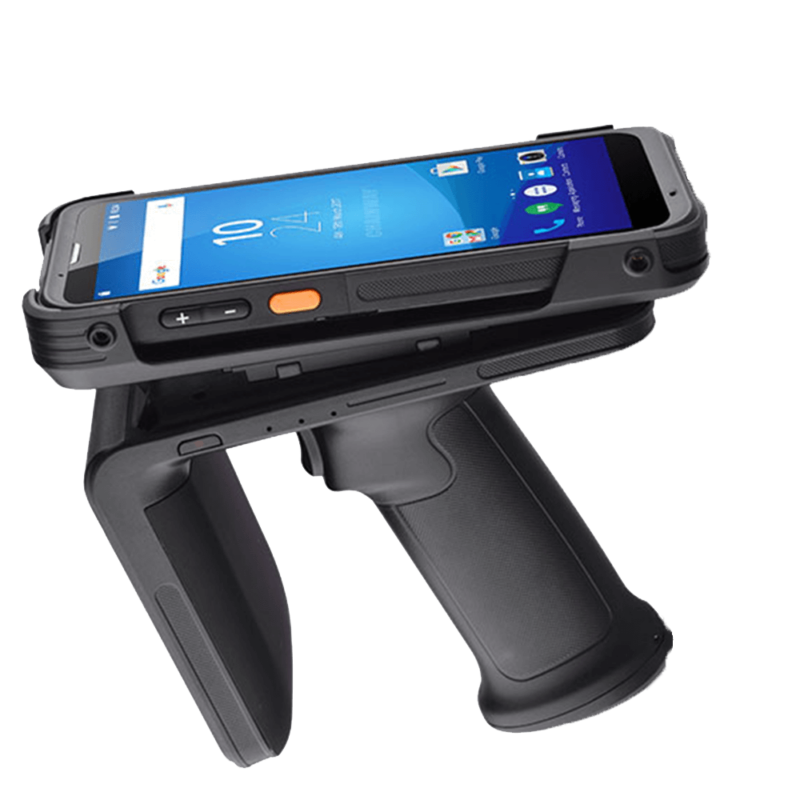

Size of adapted phone:
Sled Reader: Width 68~80 mm, thickness ≤ 22 mm
Others: Based on phone case or holder
Warranty:
12 Months Standard Warranty
- Extended Warranty Available
1x Chainway R6 UHF RFID Handheld Sled Reader
1x Power Adapter
1x USB Cable
1x User Manual
