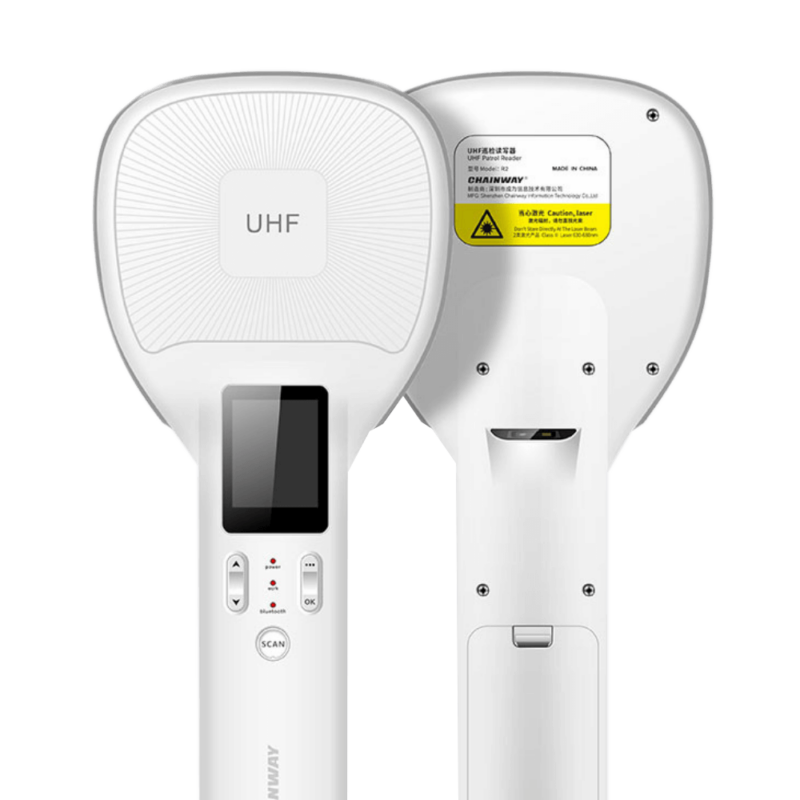

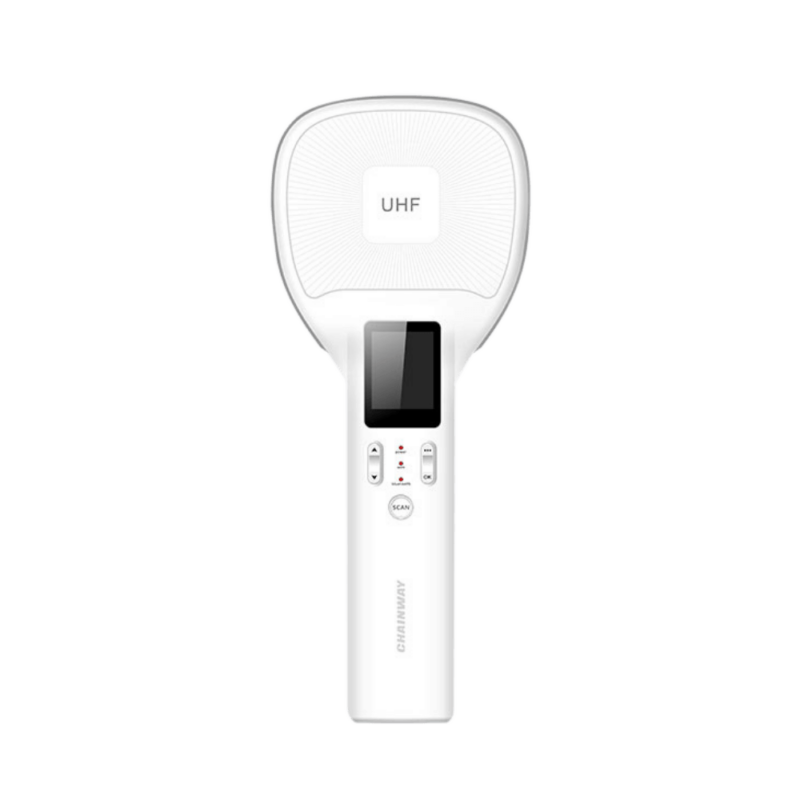

Chainway R2 Bluetooth UHF RFID Reader
RFQ
- 1.77″ Screen
- Android/IOS Support
- 5200mAh Battery
- Bluetooth 4.0
- UHF RFID
- 1D/2D Barcode Scanning (Optional)
RFQ
Out of stock
Secure Payment
Dimensions:
282 x 117.5 x 32 mm
Weight:
334 g
Display:
1.77''- Inch
128 x 160
Operating System:
N/A
CPU:
Cortex-M3
72MHz
RAM & ROM:
50000 tags
Battery:
5200 mAh
Standby: over 70 hours (keeping Bluetooth connected)
Continuous use: up to 6 hours (UHF reading)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Network:
N/A
Bluetooth:
4.0, BLE
NFC:
N/A
WiFi:
N/A
GPS:
N/A
VoLTE:
N/A
I/O:
Type-C
IP Rating:
N/A
Drop Certification:
Multiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification: 1000 x 0.5m / 1.64ft. falls at room temperature
Operating Temperature:
-20℃~+50℃
Storage Temp.:-40℃~+70℃
Humidity:
5%RH - 95%RH non condensing
Optional:
Barcode Scanning
2D Imager Scanner: SE2707
1D Symbologies:
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies:
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
UHF / RFID:
Engine:
CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000
Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
Antenna: Linear Polarized antenna (4dBi)
Linear Polarized antenna (4dBi): 900+ tags/sec
Max Read Range: > 15 m(open outdoors, Impinj MR6 tag)
Note: *Ranges and rates depend on tags and environment
N/A
Developing Environment
SDK: Android / iOS
Language: Java / Objective-C
Tool: Android Studio / Xcode
Buzzer: Support
Interfaces: Micro-USB
Indicator LED: Power, Work, Bluetooth
Warranty:
12 Months Standard Warranty
- Extended Warranty Available
1x Chainway R2 Bluetooth UHF
1x RFID Reader
1x USB Cable
1x Power Adapter
1x User Manual
