Chainway MC62 ,Android 13, 4GB/64GB, Mobile Computer
RFQ
- 4.0 ” LED Screen
- Multi Touch Panel
- Android 13
- 4GB RAM
- 64GB ROM
- Expandable ROM – 128GB
- 5,000mAh Battery
- Octa-core 2.3GHz
- IP67 Rated
- Numeric Keypad
- NFC
RFQ
Secure Payment
Dimensions:
163.5 x 67.0 x 17.1mm
Weight:
256g
Display:
4 inch LED screen
480 x 800 pixels
Multi-touch panel
Gloves and wet hands supported
Operating System:
Android 13
CPU:
CPU: Cortex A53
CPU Clock: Octa-core 2.0GHz
RAM & ROM:
RAM : 4GB
RAM Type: LPDDR4X
ROM : 64GB
ROM Type : EMMC
Battery:
5000 mAh Battery
Removable Lithium-ion polymer
Network:
2G Network: GSM (B2 / B3 / B5 / B8)
3G Network: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G Network : FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 /
B28A / B28B)
TDD-LTE (B34 / B38 / B39 / B40 / B41)
Bluetooth:
5.0
NFC:
13.56Mhz
WiFi:
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA
GPS:
ย GLONASS, BeiDou, Galileo
VoLTE:
Supported
I/O:
1x USB 2.0 OTG
1x USB Type-Cย (Data & Charing)
1x SD card slot,
1x SIM cardย card slot
IP Rating:
IP67 Rated
Drop Certification:
Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Operating Temperature:
Operating Temperature :- -4 ยฐF to 122 ยฐF / -20 ยฐC to 50 ยฐC
Storage Temperature :ย --40 ยฐF to 158 ยฐF / -40 ยฐC to 70 ยฐC
Humidity:
5% RH - 95% RH non condensing
Optional:
2D Scannerย
Zebra: SE4710; CB300; CM60
1D Sybmologies : UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
2D Symbologies :
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
Warrantyโ:
12 Months Standard Warranty
- Extended Warranty Available

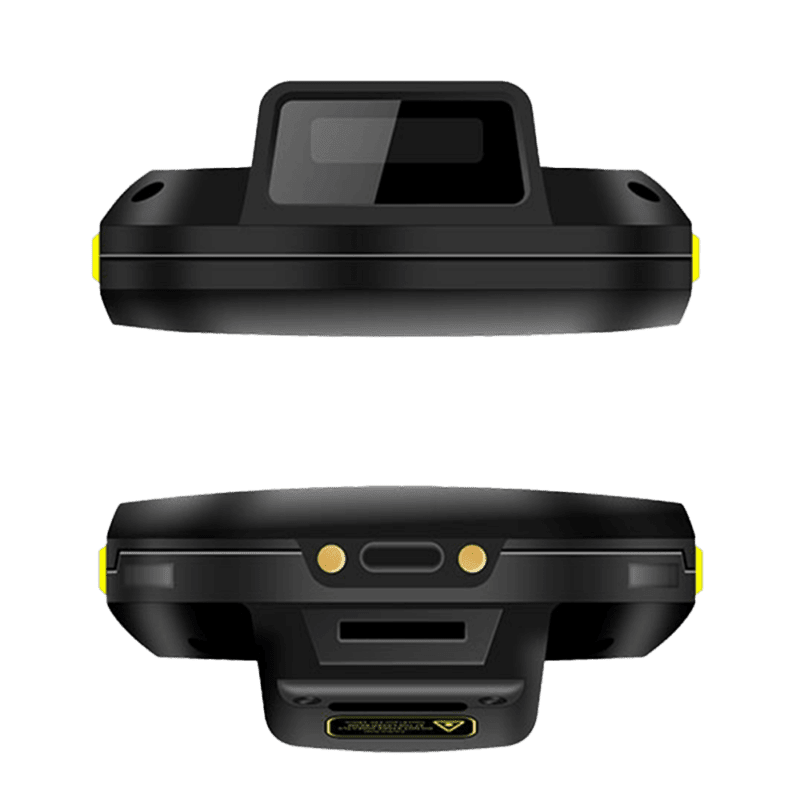

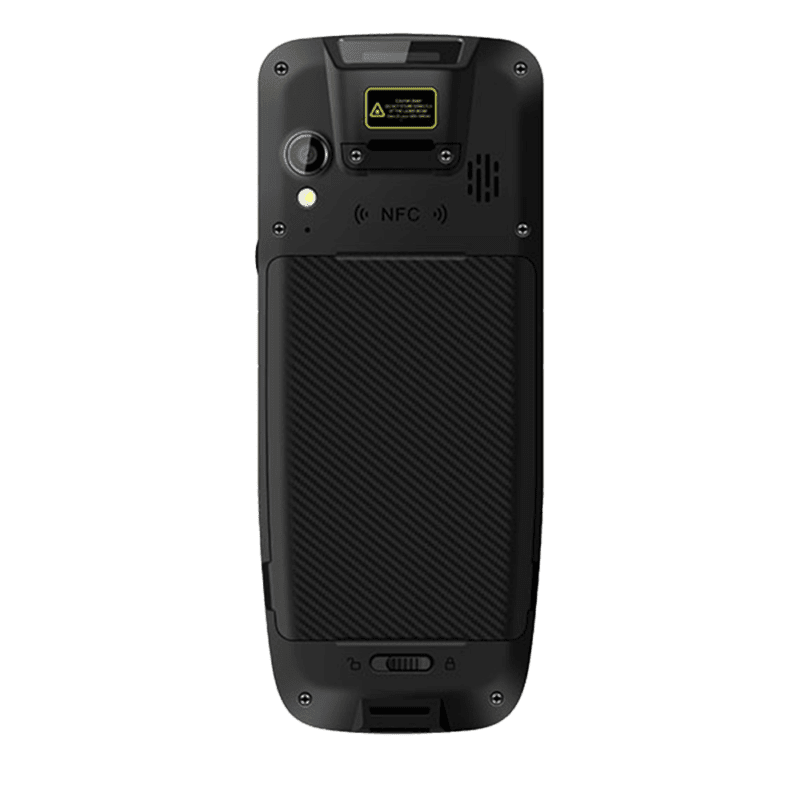

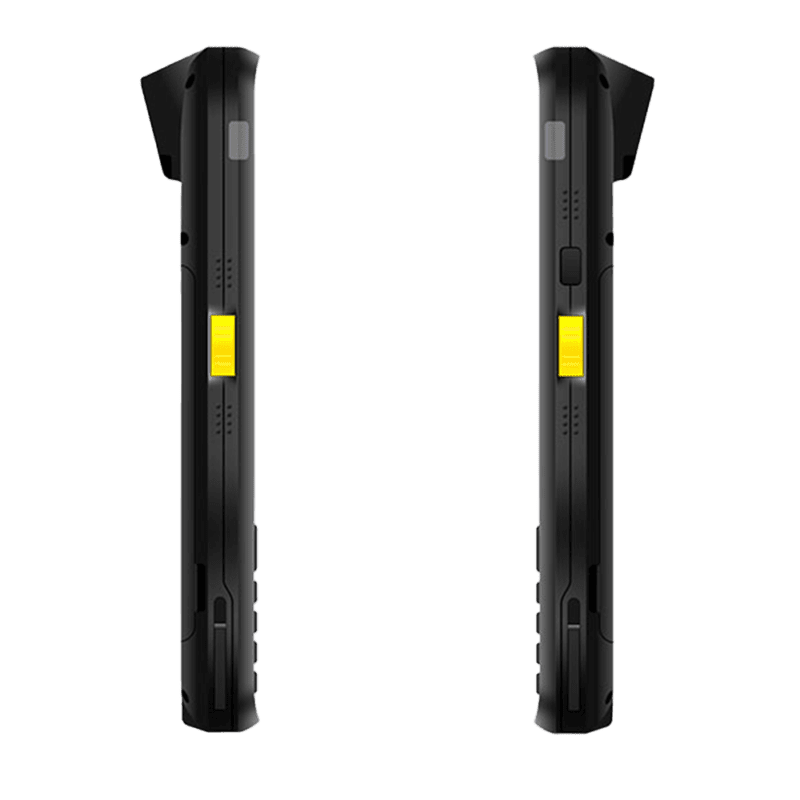

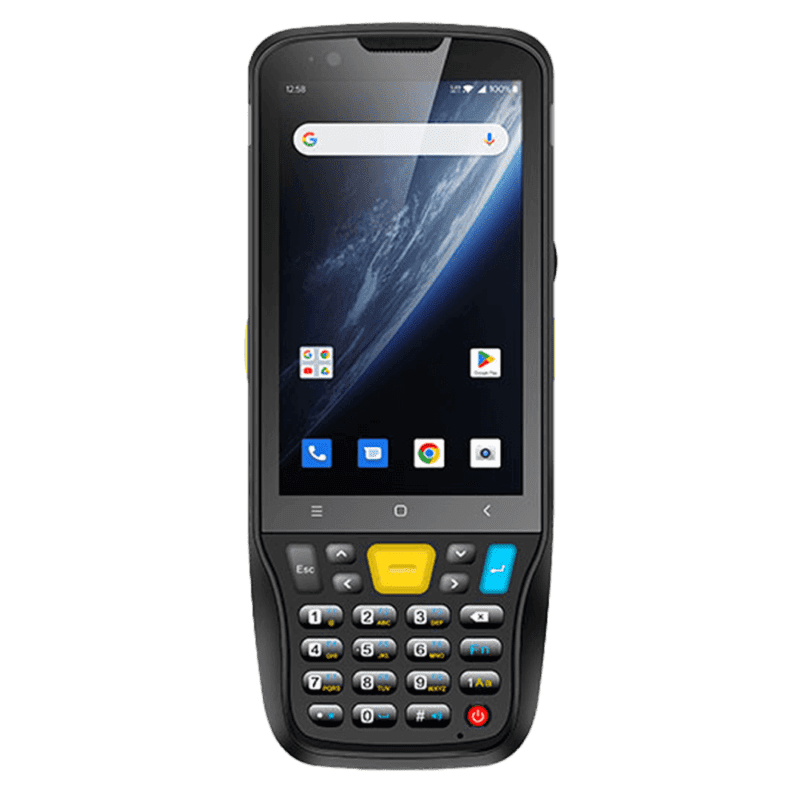

Chainway MC62 Mobile Computer
Adapter
USB Cable
User Manual
