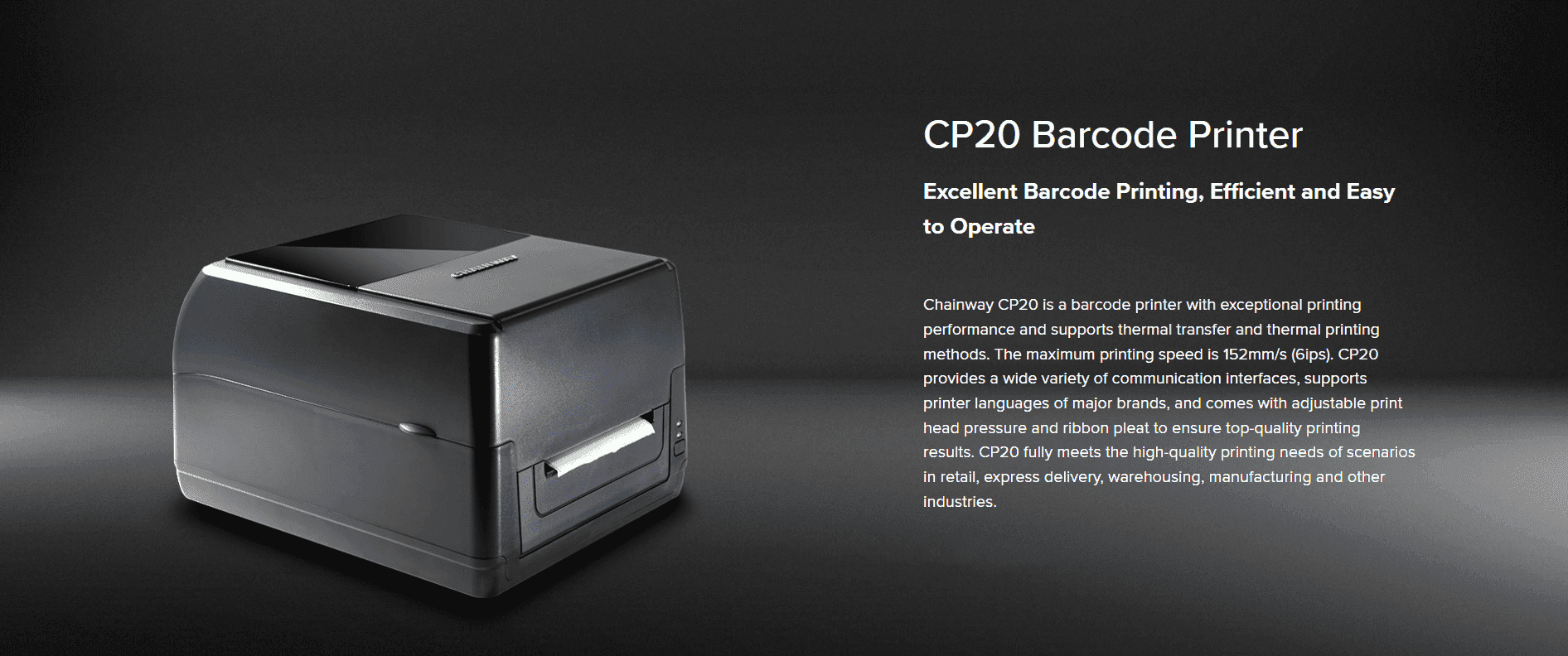

Chainway CP20 4″ 203dpi Thermal Transfer Label Printer
RFQ
Or as low as R249,999,999.75 / month interest-free, using your existing credit card. For orders over R4,000.00.How it works- Max. Printing Speed: Up to 152mm/s(6ips)
- Various Interfaces: USB/Ethernet/Serial Port/BT/WIFI
- Adjustable Mechanism for Printing Head Pressure
- TSPL/ZPL/EPL/DPL Emulation Are Supported
- Up to 300 Ribbon, Adjustable Mechanism for
Ribbon Wrinkle - Thermal Transfer /Direct Thermal
RFQ
Or as low as R249,999,999.75 / month interest-free, using your existing credit card. For orders over R4,000.00.How it worksSecure Payment
Dimensions:
282mm ร 232mm ร 171mm
Weight:
2.56kg
Printingย
Printing Method : Thermal transfer / Direct thermal
Resolution : 203dpi / 300dpi
Max. Printing Speed : 152mm (6")/s, 127mm (5")/s
Max. Printing Width : 104mm (4.09")
Max. Printing Length : 1778mm (70"), 889mm (35")
Portsย
Standard: USB
Optional: Wi-Fi, Bluetooth, Serial, LAN
Powerย
AC100-240V, 1.8A, 50-60Hz
DC 24V / 2.5A / 60W
Sensors
Gap sensor, cover opening sensor, black mark sensor, ribbon sensor
Performance
RAM : 8MB
Flash : 8MB
Expansion : Flash Memory can expansion
Developing Environment
SDK : Windows / iOS / Android / Linux / Mac
Media
Types : Continuous, gap, black mark, fan-fold and punched hole
Width : 25.4 ~ 118mm (1.0" ~ 4.6")
Thickness : 0.06 ~ 0.254mm (2.36 ~ 10mil)
Core Diameter : 25.4 ~ 76.2mm (1" ~ 3")
Label Roll : 10 ~ 1778mm (0.39" ~ 70")
Label Roll Capacity : 127mm (5") OD (External Diameter)
Ribbon
Width : 110mm
Capacity : Max .300m
Operating Temp. : 5ยฐC ~ 40ยฐC (41ยฐF ~ 104ยฐF), humidity 25% to 85% non-condensing
Storage Temp. : -40ยฐC to 60ยฐC (-40ยฐF to 140ยฐF), humidity 25% to 85% non-condensing
Print Head Life : 30km or 3months
Internal Fonts : 8 alpha - numeric bitmap fonts, Windows fonts are downloadable from software
Processor : 32- bit CPU
Driver : Windows
Barcodes :
1D: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN -8, EAN -13, EAN-128, UPC - A , UPC-E , EAN and UPC 2(5) digits add - on, MSI. PLESSEY, POSTNET, China POST, GS1DataBar, Code 11
2D: PDF -417, Maxicode, DataMatrix, QR code, Aztec
Factory Options : Serial / Lan / wifi / Bluetooth
Dealer Options :
External label roll holder
Peeler module
Cutter module
warranty:
12 Months Standard Warranty
- Extended Warranty Available
