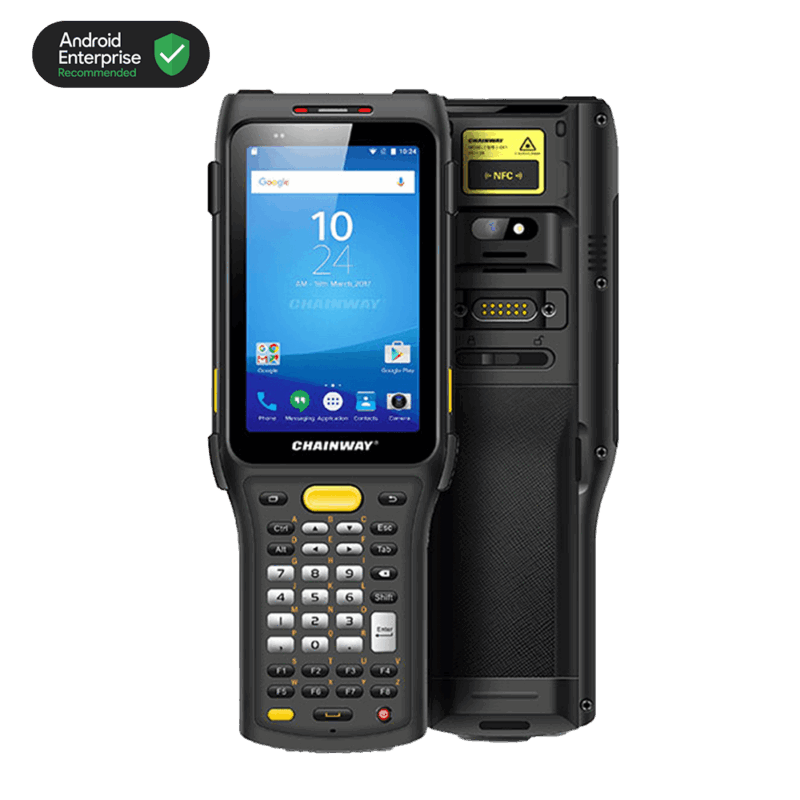

Chainway C61 Rugged Handheld Scanning Computer
RFQ
Or as low as R249,999.75 / month interest-free, using your existing credit card. For orders over R4,000.00.How it works- 4″ HD Screen
- Android 9/11
- 3GB RAM
- 32GB Storage
- 13MP Rear Camera
- 6700mAh Battery
- Octa-Core
- IP65
- 1D/2D Barcode Scanning (Optional)

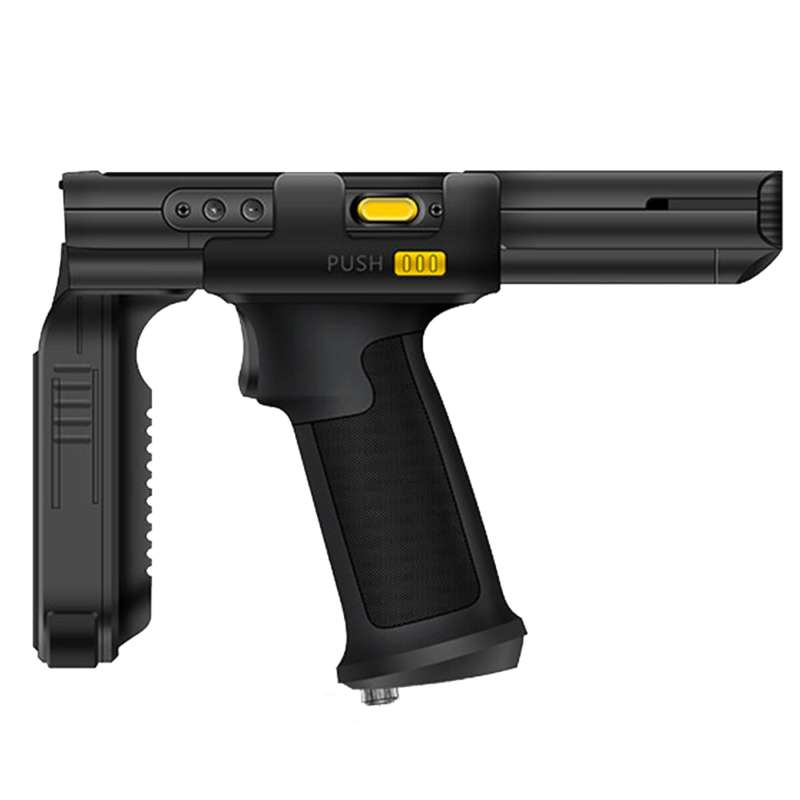

- Pistol Grip (Optional)
- UHF RFID (Optional)
RFQ
Or as low as R249,999.75 / month interest-free, using your existing credit card. For orders over R4,000.00.How it worksSecure Payment
Dimensions:
202.0 x 72.5 x 32.0 mm
Weight:
370g
Display:
4" inch
800*480 Resolution
HD Display
Gloves and wet hands support
Operating System:
Android 9 /11
CPU:
Android 9: Qualcomm Snapdragon™ 450 Octa-core, 1.8 GHz
Android 11: Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM & ROM:
3 GB + 32 GB
4 GB + 64 GB
Battery:
6700 mAh removable main battery,
5200 mAh optional pistol battery.
RTC Built in 100mAh backup battery,
supporting battery hot swap,
Standby: up to 680 hours (only main battery
Network:
2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0h
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
Bluetooth:
Android 9: Bluetooth 4.2
Android 11: Bluetooth 5.1
NFC:
13.56 MHz
WiFi:
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,
GPS:
GPS/AGPS, GLONASS, BeiDou, Galileo
I/O:
Android 9: USB Type-C, USB 3.0, OTG, extended thimble
Android 11: USB Type-C, USB 3.1, OTG, extended thimble
Card slot : 1 slot for Micro SIM card, 1 slot for TF card
Keypad : Main keyboard (Optional): 27 keys / 37 keys / 47 keys;
Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key
IP Rating:
IP65 per IEC sealing specifications
Drop Certification:
Multiple 1.8 m / 5.9 ft. drops
Operating Temperature:
-4℉ to 122 ℉ / -20 ℃to 50 ℃
Humidity:
5% RH to 95% RH (non condensing)
Optional:
2D Imager Scanner Zebra: SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850; Honeywell: N6603/EX30
1D Symbologies : UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc
2D Symbologies : PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
UHF / RFID:
Engine
CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular Polarized Antenna (4 dBi)
Power
1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
Fastest Read Rate
900+ tags/sec
Communication Mode
Pin Connector
R/W ranges
Up to 15 m (open outdoors, Impinj MR6 tag)Note*Ranges and rates depend on tags and environmentNote2*This function is optional
