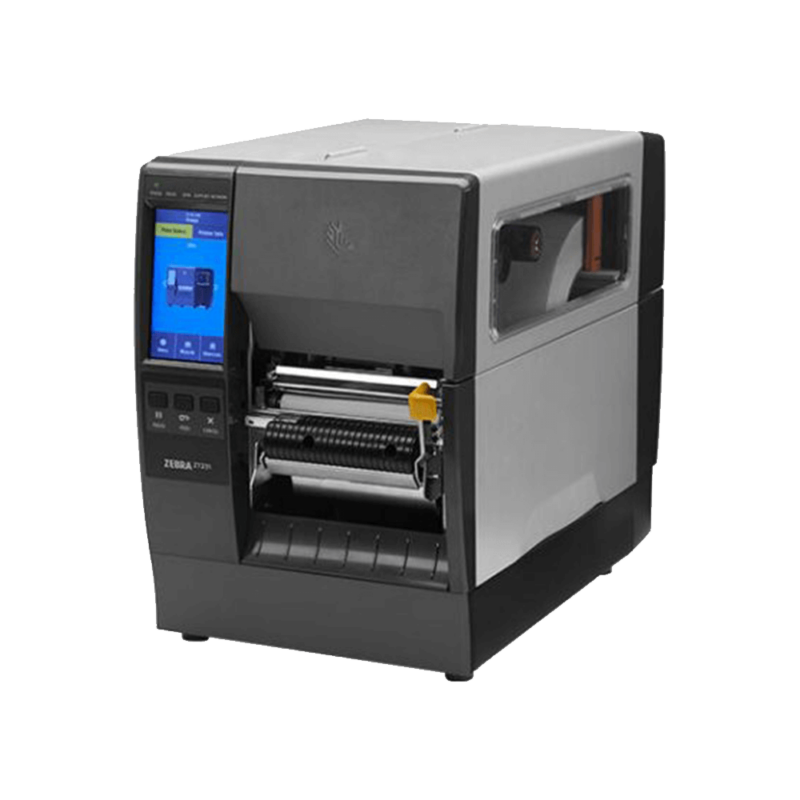

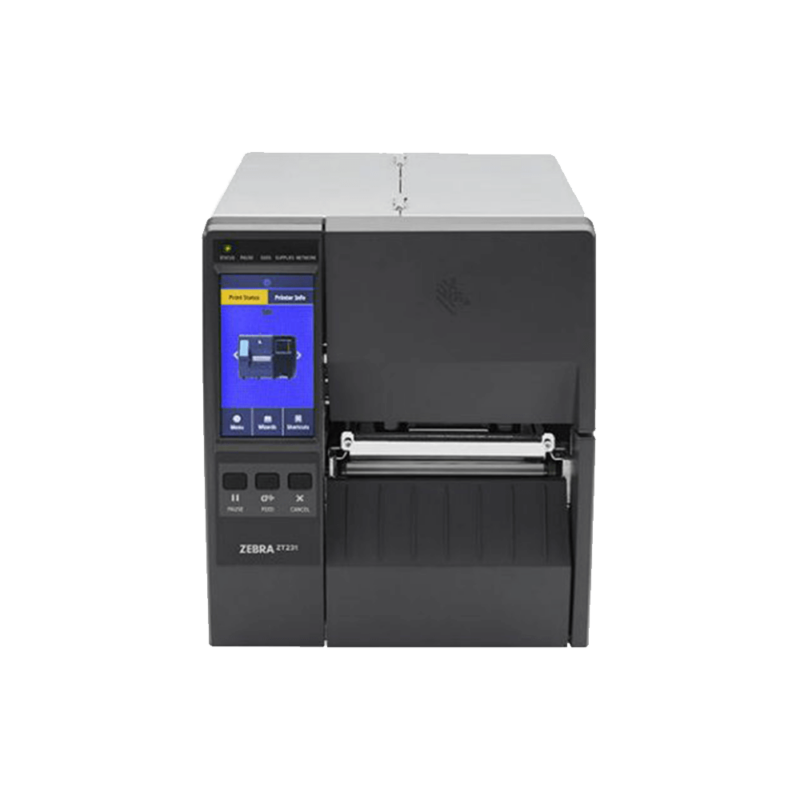

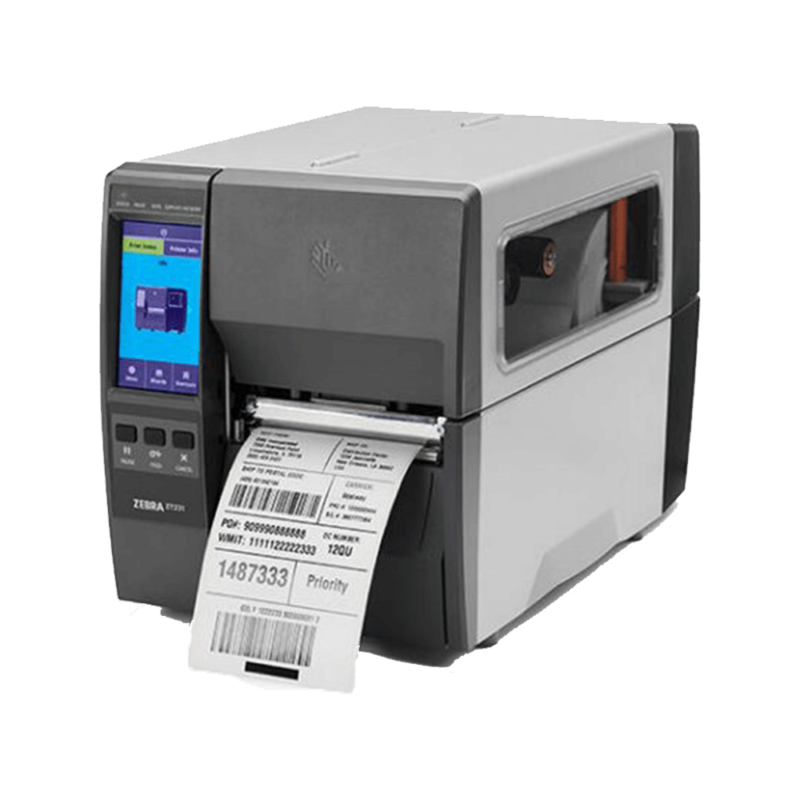

Zebra ZT231 Industrial Printer
RFQ
- Print methods: direct-thermal or thermal-transfer (optional)
- Construction: metal frame with choice of metal (ZT230) or plastic (ZT220) media cover
- Bi-fold media door with large clear window
- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Bi-color LEDs for quick printer status
- Icon-based LCD multilingual graphical user interface and full function keypad (ZT230)
- Simple keypad (ZT220Communications: USB 2.0 and RS-232 Serial ports
- ENERGY STAR® certified
RFQ
Secure Payment
Dimensions:
ZT231 Closed: 432 mm L x 241 mm W x 279 mm H
ZT231 with Liner Takeup Unit: 432 mm L x 241 mm W x 324 mm H
Weight:
ZT231: 9.1 kg
ZT231 with Liner Takeup Unit: 10.9 kg
Resolution:
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory:
256 MB SDRAM memory
256 MB on-board linear Flash memory
Maximum Print Width:
4.09 in./104 mm
Maximum Print Speed:
12 ips (203 dpi)
8 ips (300 dpi)
Media Sensors:
Moveable transmissive and reflective sensors
Maximum Print Length:
203 dpi: 157 in/3988 mm
300 dpi: 73in/1854 mm
Minimum Label and Liner Length:
Tear mode: 0.7 in/18 mm
Cutter mode: 1 in/25 mm
Peel mode: 0.5 in/13 mm
Media Width: 0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size:
8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness: 0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types: Continuous, die-cut, notch, black mark
Operating Temp.: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation
Temperature: -40ºF to 140ºF/-40º to 60ºC
Operating Humidity: 20% to 85% non-condensing
Storage Humidity: 5% to 85% non-condensing
Electrical: Universal auto-ranging (PFC-compliant)
power supply 100-240 VAC; 50-60 Hz
ENERGY STAR certified
Fonts/Graphics/Symbology
Z7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM
Barcode Symbology
Linear Barcodes:
Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with
2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
N/A
Communication:
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
• Applicator Interface
Media Handling:
• Peel — a front-mount, passive-peel with no take-up spindle
• Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only)
• Cutter — a front-mount guillotine cutter
RFID:
• UHF field-installable RFID kit
Keyboard Display Unit:
• ZKDU™ keyboard display units for stand-alone printing applications
warranty:
2 Year Standard Warranty
1x Zebra ZT231 Industrial Printer
1x Power Cable
1x User Manual
