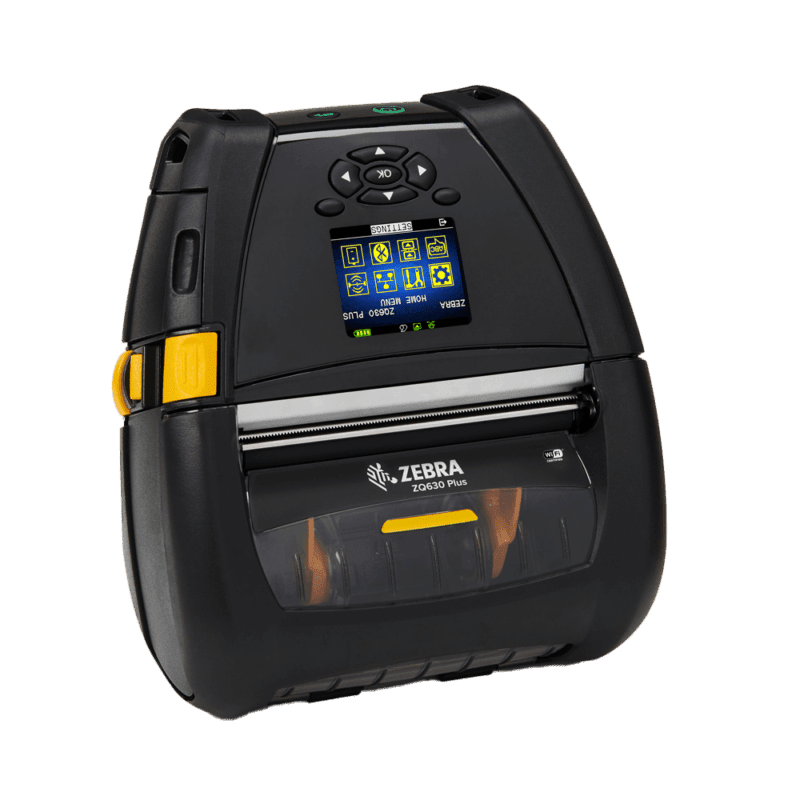

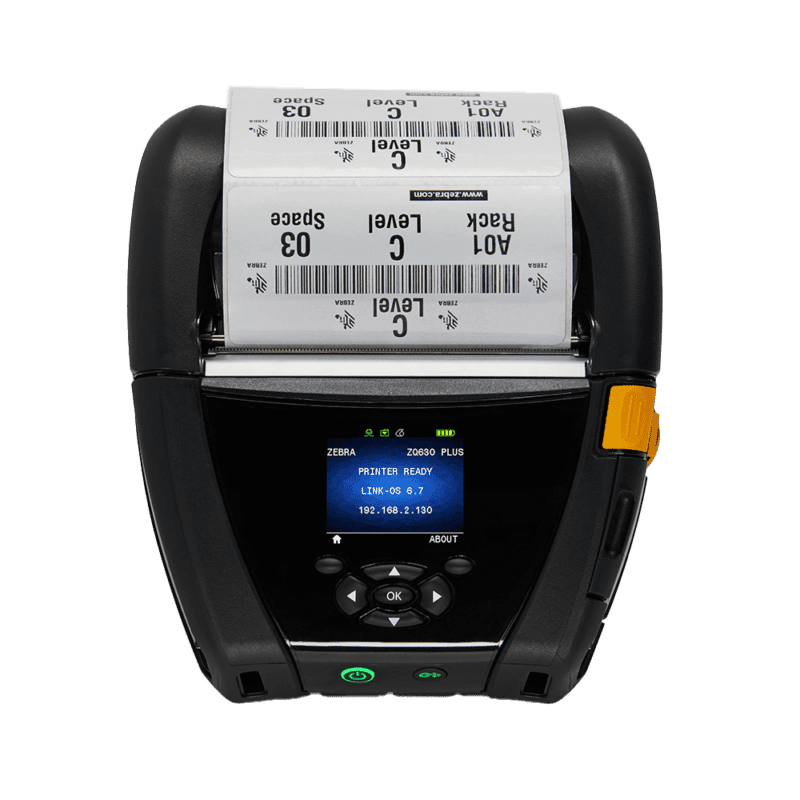

Zebra ZQ630 Plus RFID Mobile Printer
RFQ
- Print width : 41 in./104mm
- Labels, receipt and linerless printing,
- RFID tags
- IP54 rated for dust and liquid protection
- Power Precision + 6600 mAh battery
- Bluetooth 4.1
RFQ
Secure Payment
7.35 in. L x 6.5 in. W x 3.25 in. H
187mm L x 165 mm W x 82.5 H mm
Operating System : Link-OS
Resolution : 203 dpi/8 dots per mm
Memory : 256MB RAM ; 512MB Flash
Maximum Print Width : 4.1 in/ 104 mm
Maximum Print Speed : Up to 4.5 in/115mm per second
Media sensors : Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
Print Length : Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm
Power : 6600 mAh (nominal) 47.5 Wh removable
Power Precision+ Li-Ion battery
Label and Liner Length : 0.5 in./12.7 mm to 32 in./813 mm or continuous
Media Width : 2.0 in./51 mm to 4.4 in./112 mm (linered) 2.0 in./51 mm to 4.1 in./104 mm (linerless)
Maximum Media Roll Size : 2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
Thickness : 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock
Media Types : Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar and gap
Environment : Operating Temp.: -4°F to 122°F/-20°C to 50°C
Operating Humidity: 10% to 90% non-condensing
Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1
Storage Humidity: 10% to 90% non-condensing
Agency Approvals : Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B
Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5
Safety: CE, TUV, CSA
ENERGY STAR® certified
Security : FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.
- Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed)*
- Optional Fonts: downloadable bitmapped/scalable fonts
- International Character Sets (optional): Chinese (traditional/simplified);
- Japanese; Korean; Thai, Vietnamese
- Contains UFST® from Agfa Monotype Corporation
- Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
- Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on
2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39

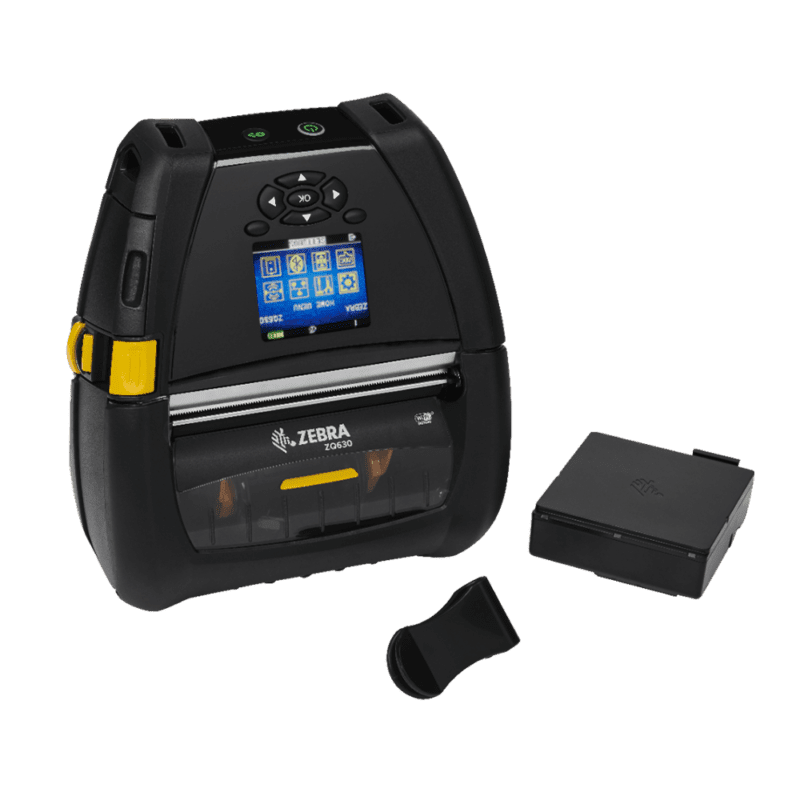

Zebra ZQ630 Plus RFID Mobile Printer
Battery (Li-Ion 6800 mAh)
Belt Clip (except when ordered with the extended capacity battery)
Documentation (QSG, Registration Card, Safety & Regulatory Guides
Speak to our Rugged SA representative about Zebra One Care or extended maintenance and support options
