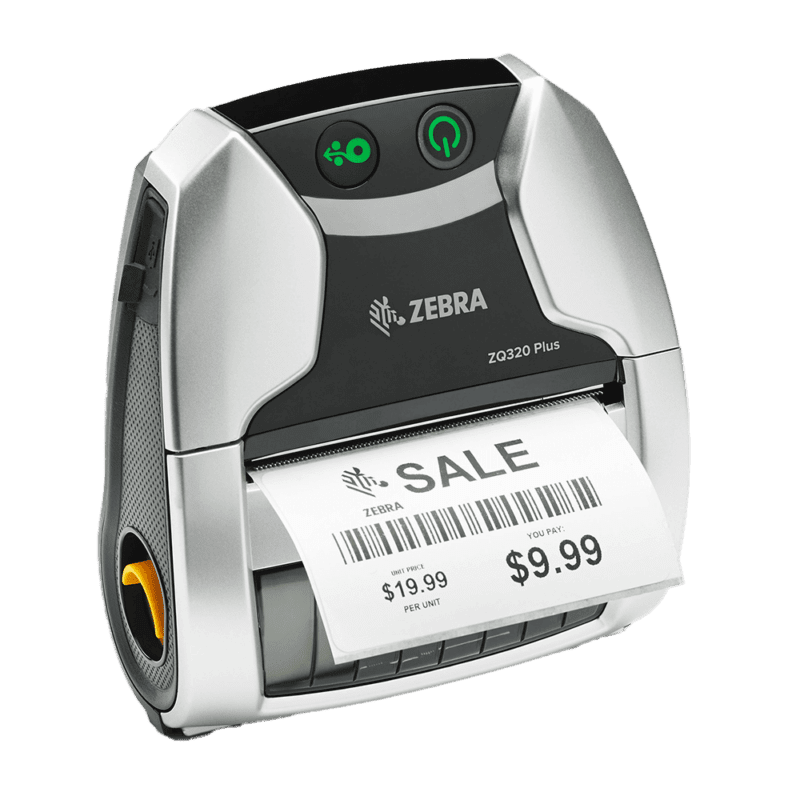

Zebra ZQ320 Plus Indoor Mobile Printer
RFQ
- Direct Thermal
- Link OS Printer Operating System
- Li-ion 2280 mAh
- IP54 MIL STD 810
- 2D Barcodes
- Li-ion 2280mAh
RFQ
Secure Payment
Dimensions : 130 mm L x 117.7 mm W x 49.5 mm H
5.12 in. L x 4.63 in. W x 1.95 in. H
Volume : 57.4 cc/46.2 cubic in.
Weight with battery : 0.43 kg/0.95 lbs
Operating System : Link- OS printer operating system
Printer Method : Direct Thermal
Resolution : 203 dpi/ 8 dots mm
Memory : 128MB RAM, 256MB Flash (48 MB User Available )
Battery : Li-ion 2280 mAh, 7.2V, Power Precision
Maximum Print Speed : Up to 4 ips (100 mm/s)
Media Sensors : Black mark
Gap (optional)
Programming Languages : CPCL, ZPL The ZPL programming language ensures full compatibility with many other Zebra printers
Cutter : Tear bar
Printer Direction : Horizontal and vertical
Media width : 58 mm +/- 0.75mm/2.28in +/-0.02 in ; spacers available to support 50.8mm +/- 0.75mm/2 in +/- 0.02 in.
Maximum Roll Outside Diameter : 40mm/1.57 in.
Media Holder : Drop-in fixed media width (claimshell)
Media Thickness : 0.05334 mm/0.0021 in. to 0.16 mm/0.0063 in
Media Types: Direct thermal : receipt paper, linerless labels, labels
Minimum Reciept Length : Unconstrained in line mode
Label Counter : Odometer
Operating Temp : -15 to +50C/5 to +122F
Storage Temp : -20 to 60C/ -4 to 140 F
Charging Temp : 0 to 40C/0 to +140F
Operating Humidity : 10% to 90% non-condensing
IP rating : IP54
Drop Specification : 1.5m/5 ft. tested over operating temp range
Tumble Specification : 500 free falls from 1m/3.3 ft.
Vibration : MIL STD 810
CPCL/ZPL (Bitmap) : Simplified CN: 24x24 Msung, 16x16 SimSun, Trad CN: 24x24 Mkai, 16x16 New Sans MT, Vietnamese: 16x16 Utah, Japanese 16x16 MS Gothic
warranty:
1 Year Standard Warranty Included
3 & 5 Year Extended Warranty Options Available
ZQ320 Plus indoor Printer,
1x Battery (Li-Ion 2280 mAh),
1x Belt clip,
USB cable (Type C to Type A), Quick Start Guide registration card
Safety Guide
Regulatory Guide
