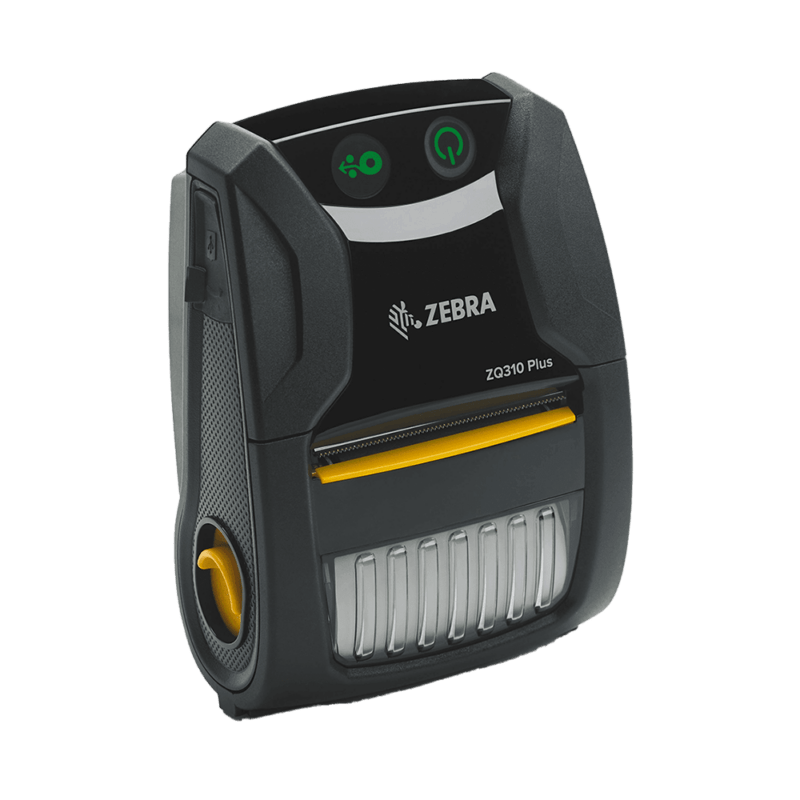

Zebra ZQ310 Plus Outdoor Mobile Printer
RFQ
- Direct Thermal
- Link OS Printer Operating System
- Li-ion 2280 mAh
- IP54 MIL STD 810
- 2D Barcodes
RFQ
Secure Payment
130mm L x 93.5mm W x 49.5 mm H
5.12 in. L x 3.68 in. W x 1.95 in. H
Operating System : Link- OS printer operating system
Printer Method : Direct Thermal
Resolution : 203 dpi/ 8 dots mm
Memory : 128MB RAM, 256MB Flash (48 MB User Available )
Battery : Li-ion 2280 mAh, 7.2V, Power Precision
Maximum Print Width : 48mm/1.89 in.
Maximum Print Speed : Up to 4 ips (100 mm/s)
Media Sensors : Black mark
Gap (optional)
Programming Languages : CPCL, ZPL The ZPL programming language ensures full compatibility with many other Zebra printers
Cutter : Tear bar
Printer Direction : Horizontal and vertical
Media width : 58 mm +/- 0.75mm/2.28in +/-0.02 in ; spacers available to support 50.8mm +/- 0.75mm/2 in +/- 0.02 in.
Maximum Roll Outside Diameter : 40mm/1.57 in.
Media Holder : Drop-in fixed media width (claimshell)
Media Thickness : 0.05334 mm/0.0021 in. to 0.16 mm/0.0063 in
Media Types: Direct thermal : receipt paper, linerless labels, labels
Minimum Receipt Length : Unconstrained in line mode
Label Counter : Odometer
Operating Temp : -15 to +50C/5 to +122F
Storage Temp : -20 to 60C/ -4 to 140 F
Charging Temp : 0 to 40C/0 to +140F
Operating Humidity : 10% to 90% non-condensing
IP rating : IP54
Drop Specification : 1.5m/5 ft. tested over operating temp range
Tumble Specification : 500 free falls from 1m/3.3 ft.
Vibration : MIL STD 810
- CPCL/ZPL (Bitmap) : Simplified CN: 24x24 Msung, 16x16 SimSun, Trad CN: 24x24 Mkai, 16x16 New Sans MT, Vietnamese: 16x16 Utah, Japanese 16x16 MS Gothic
- Linear Barcodes - Codabar (NW-7), Code 39, Code 93, Code 128,
EAN-8, EAN-13, 2 and 5 digit add-on,
Interleaved 2-of-5, UCC/EAN 128, UPC-A,
UPC-E,2 and 5 digit add-on - 2D Barcodes - 2D Barcodes: Aztec Code, Data Matrix,
GS1/DataBar™ (RSS) family, MaxiCode,
MicroPDF417, PDF417, QR Code, TLC 39
ZQ310 Plus Printer
Battery Li-ion 2280 mAh
Belt clip
USB cable (Type-C to Type A)
Quick Start Guide
Registration card
