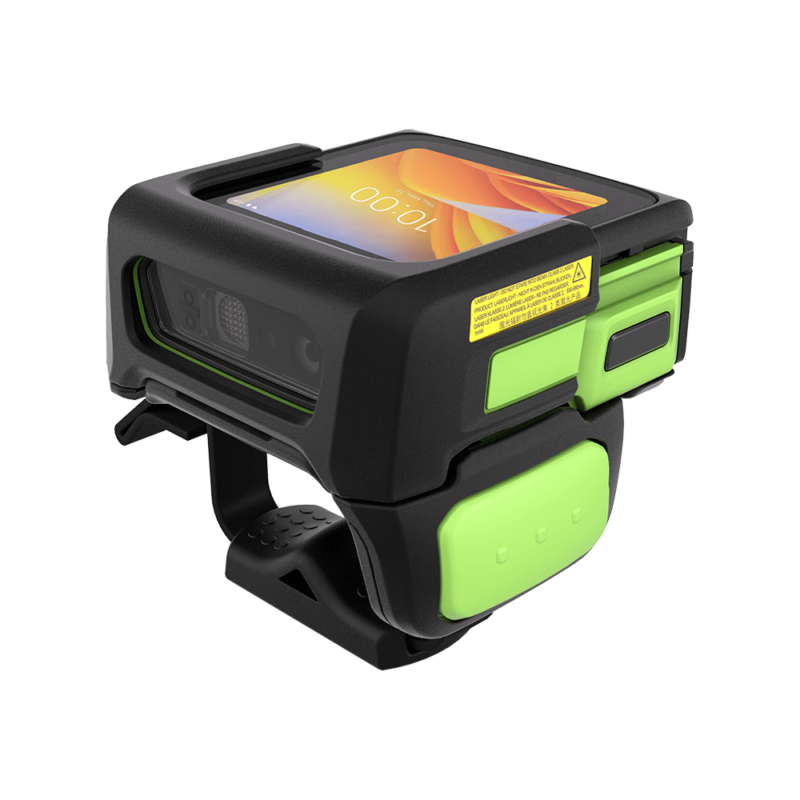

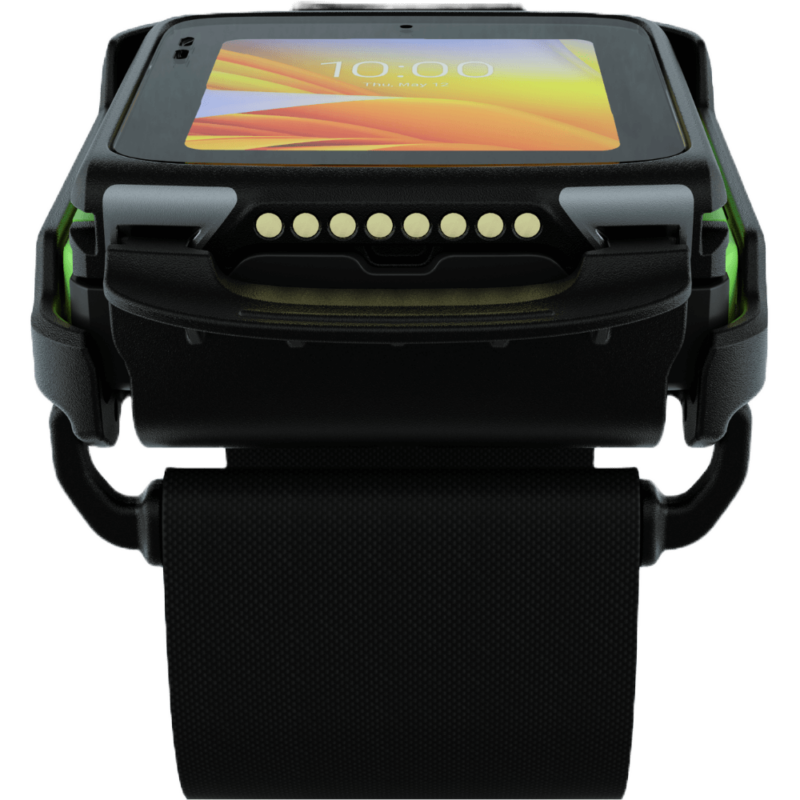

Zebra WS50 Android Wearable Computer
RFQ
- 2.0” Inch AMOLED Display
- Android 11 AOSP
- 13MP rear camera with Flash (Wrist only)
- 1GB RAM
- 8GB Flash
- 4100 Platform/SDW429w, quad-core, 2.0 GHZ
- Push To Talk
- NFC
RFQ
Secure Payment
Dimensions:
2.44 in. L x 2.32 in. W x 0.71 in. D
Wrist (with mount) : 62 mm L x 59 mm W x 18 mm D
Weight:
70 g
Wrist (with mount): 112 g
Display:
2.0'' Inch AMOLED Display
460 x 460 Resolution
Corning® Gorilla® Glass
Capacitive touch panel
Fingertip and Glove Support
Operating System:
Android 11 AOSP
CPU:
CPU : Snapdragon Wear™
CPU Clock : 4100 Platform/SDW429w, Quad-core, 2.0 GHZ
RAM & ROM:
RAM : 1GB
ROM : 8GB
Battery:
Standard (Wrist): 3.08 Watt Hours; 800 mAh
High Capacity (Converged): 5 Watt Hours; 1300 mAh
PowerPrecision; Hot Swap (2 minutes, memory persistent)
Network:
N/A
Bluetooth:
Bluetooth 4.2; Bluetooth Low Energy (BLE) support; Class 1
NFC:
Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, and Card Emulation via Host (HCE) support
WiFi:
IEEE 802.11 a/b/g/n/ac/d/h/i/r; Wi-Fi™ certified; IPv4, IPv6, 1×1 SISO
GPS:
N/A
VoLTE:
N/A
I/O:
Speaker (90dBA); internal mic; PTT ready; Bluetooth headset support
IP Rating:
IP65
Drop Certification:
Wrist: 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature
Converged: 6 ft./1.8 m drop to tile over concrete per MIL-STD 810G across operating temperature
Tumble Specification
Wrist: 1,000 tumbles @ 1.6 ft./0.5 m
Converged: 2,000 tumbles @ 1.6 ft./0.5 m
Meets and exceeds IEC tumble specifications
Operating Temperature:
14° F to 122° F/-10° C to +50° C
Storage Temperature : -40° F to 158° F/-40° C to +70° C
Humidity:
5% – 95% non condensing
Optional:
N/A
Biometrics:
N/A
UHF / RFID:
N/A
Vibration : 4 g’s PK Sine, 5hz to 2khz, 1 hour duration per axis; 0.04 g2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis.
Electrostatic Discharge (ESD) : +/-15 kV air discharge, +/-8 kV direct/indirect discharge
Sensors
Light Sensor : Automatically adjusts display backlight brightness
Motion Sensor : 6-axis accelerometer with MEMS Gyro
Scanning Performance
Scanning :
Converged: SE4770 1D/2D standard range omni-directional imager
Wrist: 13 MP camera with flash, or no data capture option
Optical Resolution : 1280 x 800 pixels
Roll : 360°
Pitch : ±60°
Skew : ±60°
Aiming Element : 655 nm Laser
Field of View : Horizontal: 48°, Vertical: 30°
Ambient Light Immunity (from total darkness) : Maximum 107,639 lux (direct sunlight)
Supported 1D Symbologies : Code 39, Code 128, Code 93, Code bar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI Data Bar, Base 32 (Italian Pharma)
Supported 2D Symbologies : PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Supported OCR Symbologies : OCR-A, OCR-B
Scan Triggering : Manual ambidextrous trigger or automatic via Proximity Sensor technology
Warranty:
1 Year Standard Warranty
1x Zebra WS50 Android Wearable Computer
1x Charging Cable
1x User Manual
