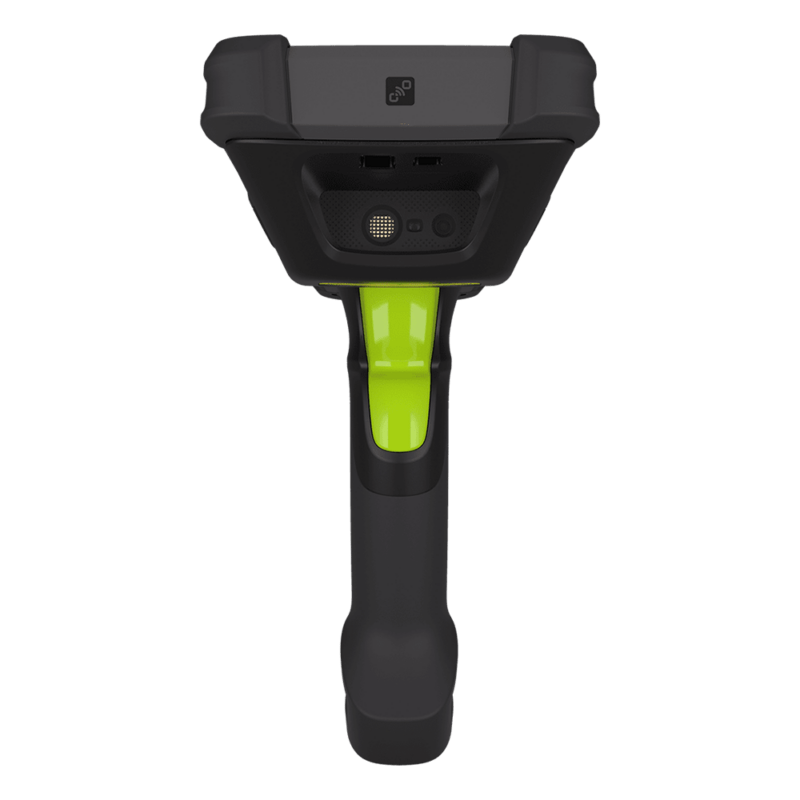

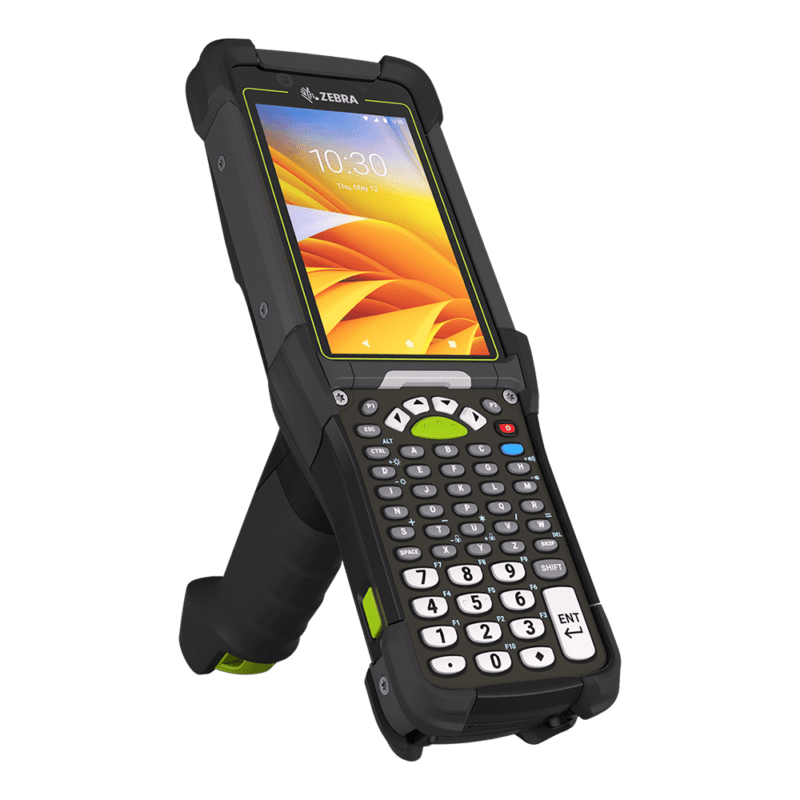

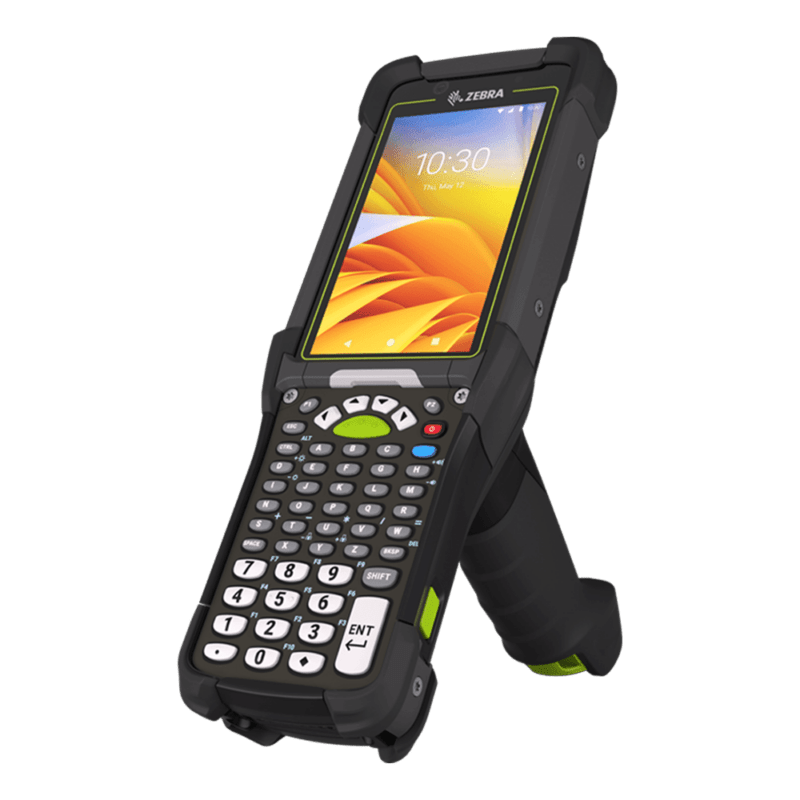

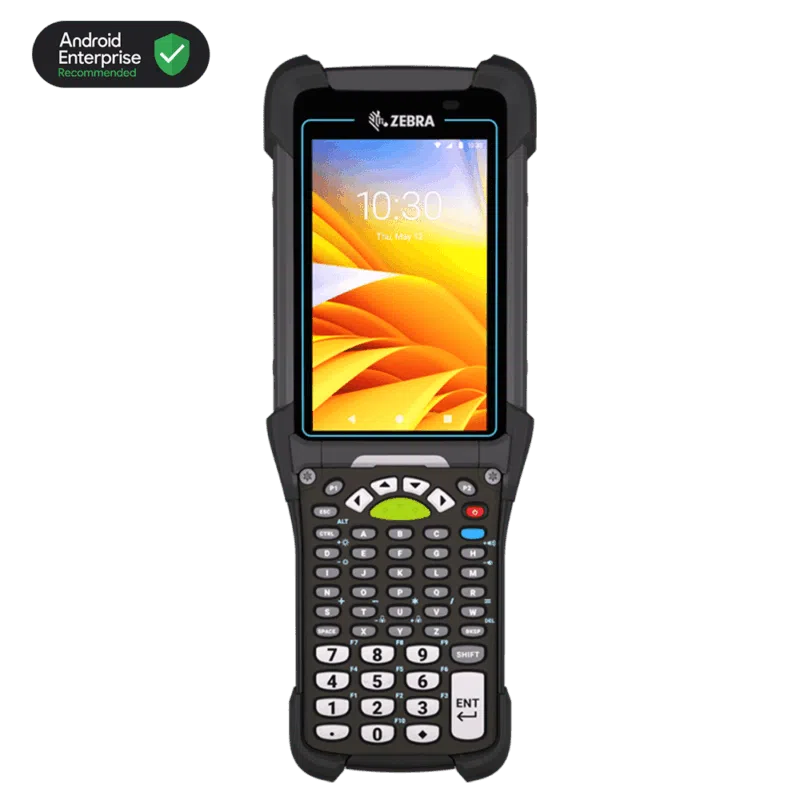

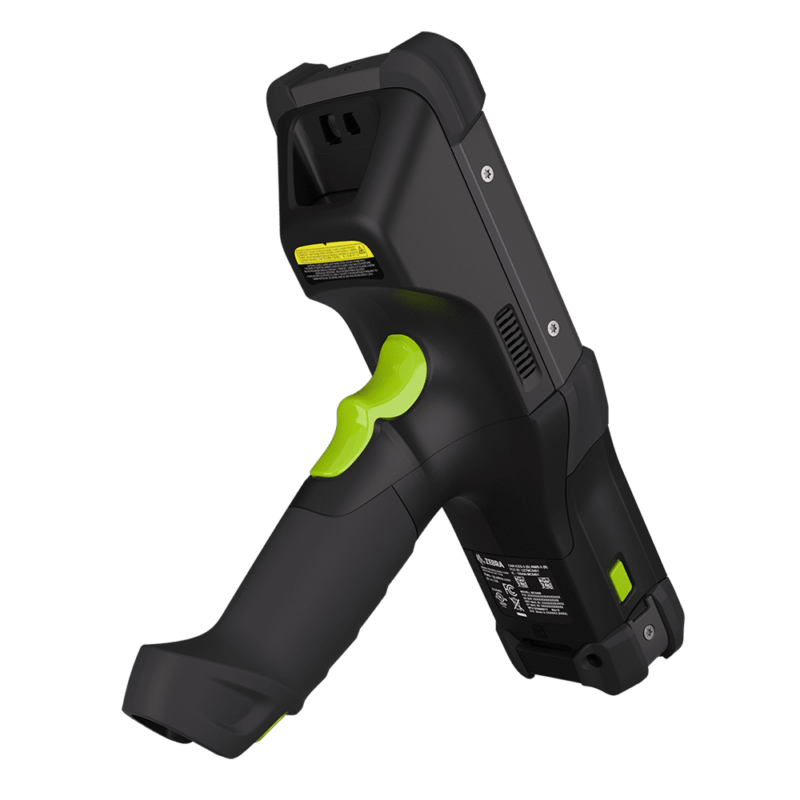

Zebra MC9450 5G Rugged Mobile Computer
RFQ
- 4.3″ WVGA Screen
- 6GB RAM
- PTT Voice
- MIL-STD-810H
- IP65 and IP68
- PowerPrecision+ Advanced Battery
- 1D/2D Extended Range Barcode scanner
- Dual Mode Capacitive Touch with Finger, Gloved Finger
- Wi-Fi 6E -5G
- NFC
- Android Recommended
RFQ
Secure Payment
Dimensions:
240 mm L x 88 mm W x 189 mm H
Weight:
743 g
Display:
4.3''- inch WVGA Display
800 x 480 Resolution
Corning® Gorilla® Glass Glove Mode Supported
Operating System:
Android 17
CPU:
CPU : Qualcomm
CPU Clock : 4490 octa-core; 2.4 GHz
RAM & ROM:
RAM : 6GB
ROM :128GB
Battery:
Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.20 Wh); Optional Freezer Capacity battery — 5000mAh (18.80 Wh); Optional 7000mAh (25.20 Wh) Non-Incendive battery; Hot swap battery backup with temporary session persistence
Network:
3G: B2/4/5
4G: B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/ 48/66/71
5G: n2/5/7/8/12/13/14/25/26/30/38/41/48/66/71/77/78
Bluetooth:
Class 2, Bluetooth v5.3
NFC:
ISO 14443 Type A and B; FeliCa and ISO 15693 cards
WiFi:
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc
GPS:
GPS, GLONASS, Galileo, QZSS Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA
VoLTE:
N/A
I/O:
1 nano SIM; 1 eSIM
MicroSD supports up to 2 TB
Speaker and microphone
USB 2.0 (bottom pogo connector) — high speed (host and client)
IP Rating:
IP65 and IP68 with battery per applicable IEC sealing specifications
Drop Certification:
MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H Freezer version: 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H
Operating Temperature:
Standard: -4°F to 122°F/-20°C to +50°C
Freezer: -22°F to 122°F/-30°C to +50°C
Storage Temperature : -40°F to 158°F/-40°C to 70°C
Humidity:
Standard: 5%-95% non-condensing
Freezer: 5%-95% condensing (condensation resistant model with heaters for scanner exit window and touch panel glass)
Optional:
N/A
Biometrics:
N/A
UHF / RFID:
N/A
Vibration :4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Electrostatic Discharge (ESD) :+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge
Scanning :SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan Engine with red laser aimer
Camera :Front: 8 MP; Rear: 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard)
Interactive Sensor Technology (IST)
Light Sensor : Automatically adjusts display backlight brightness
Magnetometer : eCompass automatically detects direction and orientation
Motion Sensor : 3-axis accelerometer with MEMS Gyro
Warranty:
1 Year Standard Warranty Included
3 & 5 Year Extended Warranty Options Available
1x Hot Swappable Battery
1x User Manual
