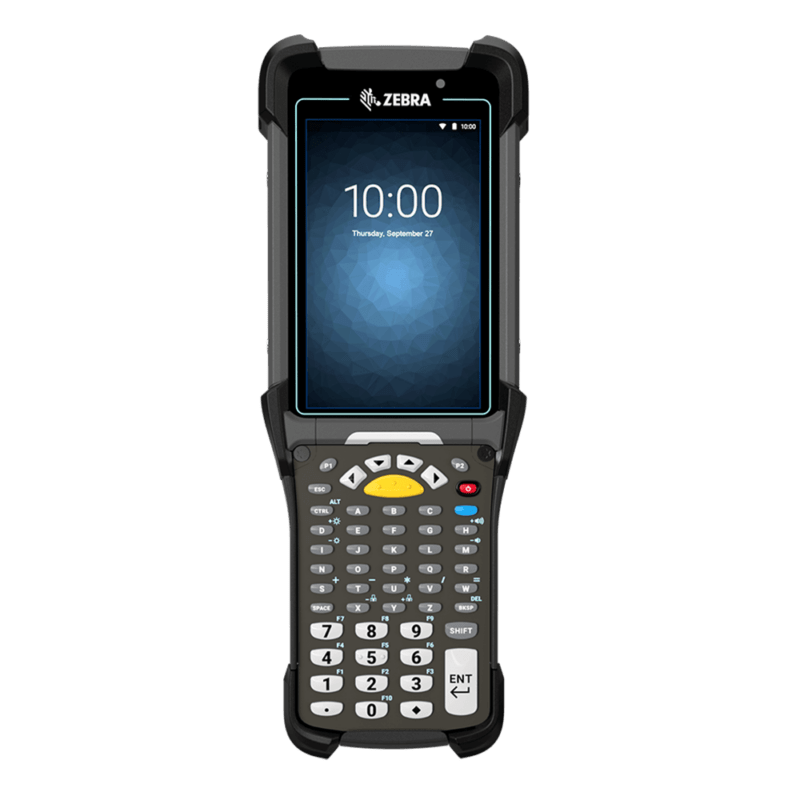

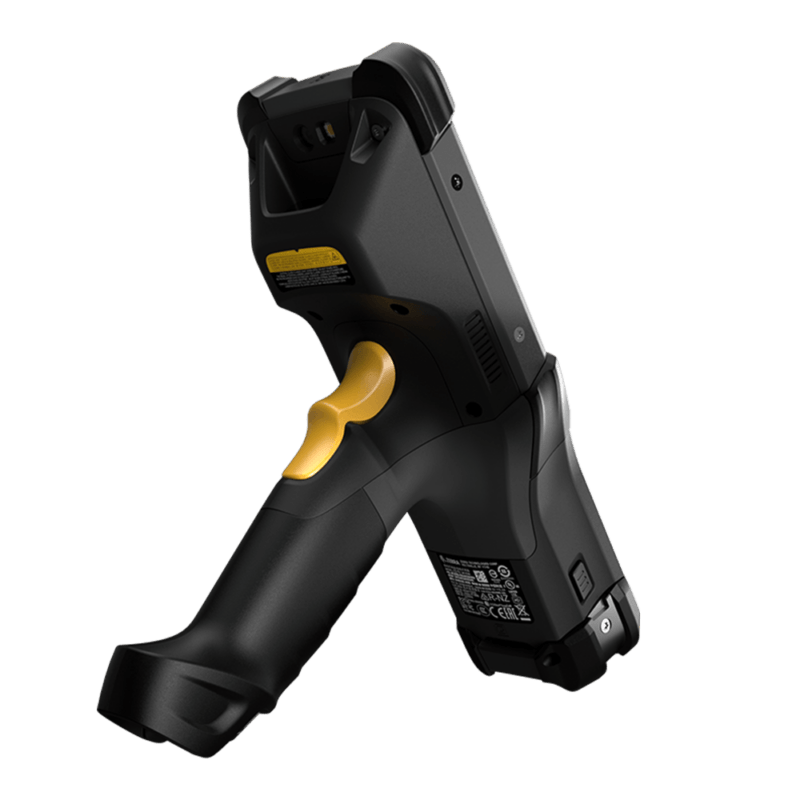

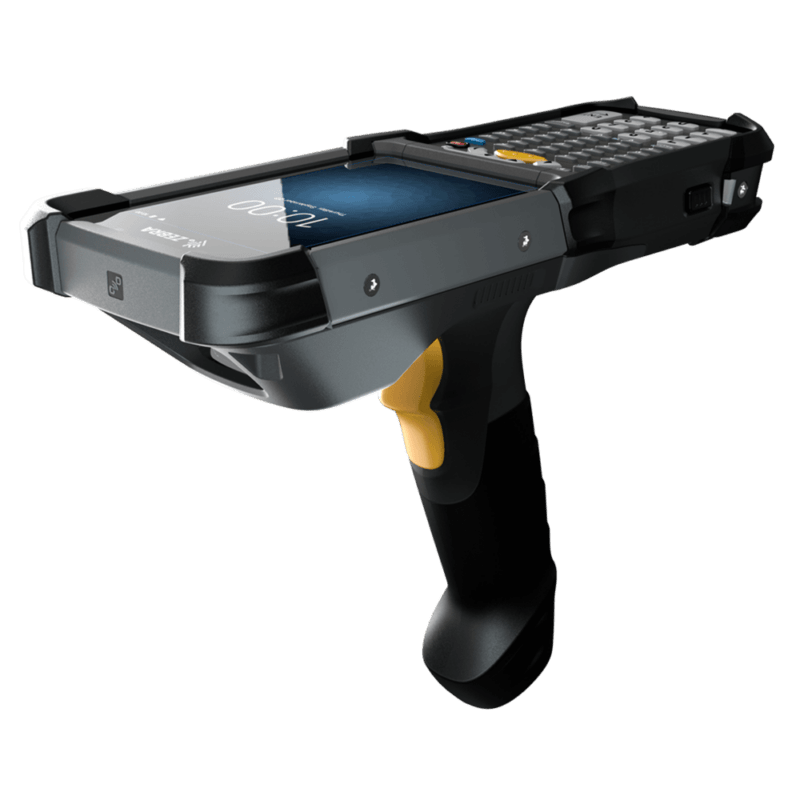

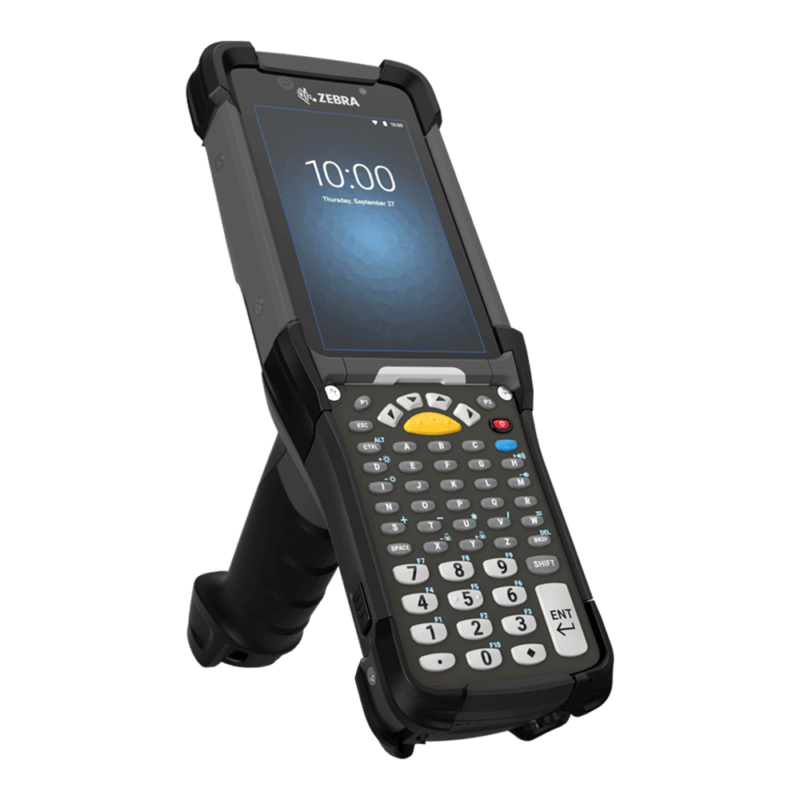

Zebra MC9300 Rugged Handheld Mobile Computer
RFQ
- 4.3″ large multi display
- 5.0 low energy Bluetooth
- 13MP color rear camera
- 5MP front camera
- SE4850 extended range imager
- Touch screen and keyboard input
- Fast charging (up to 2.4A)
- NFC
RFQ
Secure Payment
Dimensions:
240 mm L x 88 mm W x 189 mm H
Weight:
765g
Display:
4.3''-inch WVGA Display
800 x 480 Resolution
Corning Gorilla Glass
LED backlit display
Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model).
Operating System:
Android 11; upgradeable to Android 14
CPU:
CPU : Qualcomm Snapdragon™
CPU Clock : 660 octa-core, 2.2 GHz
RAM & ROM:
RAM : 4GB
ROM : 32GB
Battery:
Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh)
Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence
Network:
N/A
Bluetooth:
Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support
NFC:
Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support
WiFi:
EEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2×2 MU-MIMO
GPS:
N/A
VoLTE:
N/A
I/O:
User accessible MicroSD with 32GB SDHC and up to 256GB SDXC
Speaker, Microphone
IP Rating:
IP67 and IP65 per applicable IEC sealing specifications
Drop Certification:
Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G
Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G
Operating Temperature:
Standard: -4°F to 122°F/-20°C to +50°C,
Freezer: -22°F to 122°F/-30°C to +50°C
Storage Temp. : -40°F to 158°F/-40°C to 70°C
Humidity:
Standard: 5% to 95%, non-condensing;
Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater)
Optional:
N/A
Biometrics:
N/A
UHF / RFID:
N/A
Vibration : 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Thermal Shock : -40°F to 158°F (-40° C to 70°C) rapid transition
Electrostatic Discharge (ESD) : ± 15kVdc air discharge; ± 8kVdc direct discharge;
± 8kVdc indirect discharge
Scanning
SE965: 1D standard range laser scanner
SE4750: 1D/2D standard range omnidirectional imager
SE4770: 1D/2D standard range omnidirectional imager
SE4750 DPM: Direct Part Mark (DPM) imager
SE4850: 1D/2D extended range imager
Sensors
Ambient Light Sensor : Automatically adjusts display and keypad backlight brightness
Motion Sensor : 3-axis Accelerometer with MEMS Gyro
Camera
Front: 5MP fixed focus, 2.0 aperture
Rear: 13MP autofocus, 2.2 aperture, flash LED generates balanced white light, support torch mode, supports rear camera barcode scanning
Device Approvals and Compliance
TAA (Optional on select configurations) : Trade Agreement Act optional on select configurations Compliant, FIPS 140-2 (DIM and DAR) support; FIPS 140-2 Level 1: Data in Motion and Data at Rest
Non-Incendive (NI)1 (Optional on select configurations) : Suitable for use in Class I, II, III Div 2
Safety: cULus Listing — ISA/ANSA 12.12.01
Gases: Class I — Groups A, B, C, D
Dusts: Class II — Groups F, G
Fibers and Flyings: Class III
-20°C ≤ Ta ≥ +50°C T6
Warranty:
1 Year Standard Warranty
1x User Manual
