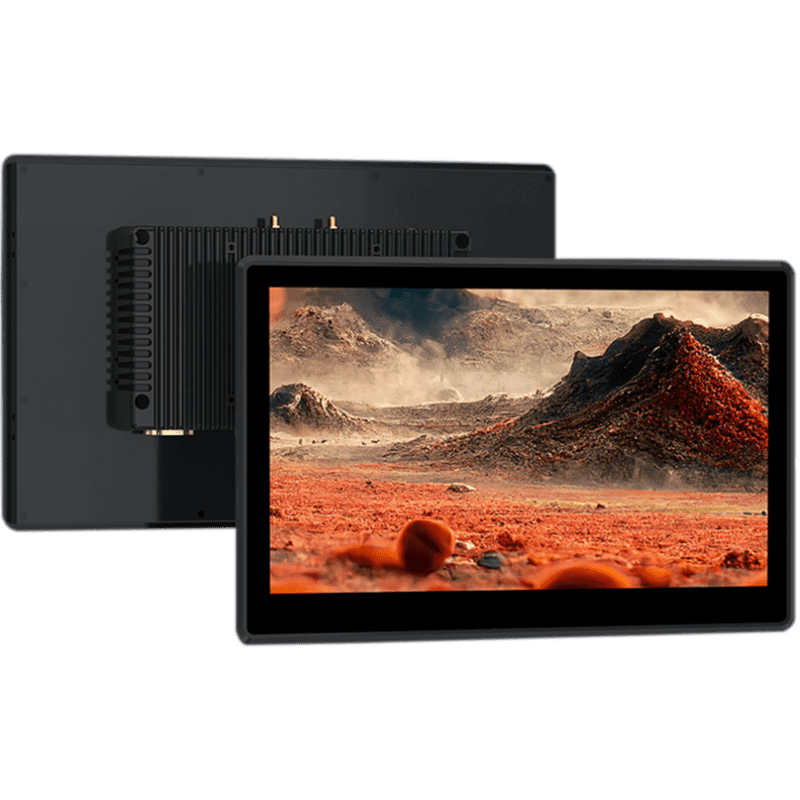

ONERugged Industrial Panel PC P15R | 15.6” Android 12
RFQ
- 15.6″ FHD Screen
- Android 12
- 4GB RAM
- 64GB ROM
- Quad-Core Processor
- 220 Nits
- IP65 Rating (Front Panel)
- Fanless Cooling
- Wide Temperature and Voltage Range
RFQ
Secure Payment
Dimensions:
388.63 x 248.43 x 54.95 mm
2.4kg
Display:
15.6" Inch
1920x1080 Resolution
220 Nits
Colour:
Black
Touch Panel:
10 PCAP
Ports:
1x USB 3.0
1x USB 3.0 /OTG
2x USB 2.0
1x DC 12V4A (Power connector)
1x ∮3.5mm Standard Earphone jack
1x RJ45
(10/100/1000Mbps adaptive)
2x RS232
1x HDMI
Processor:
CPU: ARM RK3568
CPU Clock: Quad-Core, 64 bit ARM V8.2 Cortex-A55 ,up to 2.0 GHz
GPU: Mali-G52-2EE
Operating System:
Android 12
Memory:
RAM: 4GB
RAM Type: DDR4
ROM: 64GB
Power:
Adapter (Input AC 100V-240V 50Hz/60Hz, output DC 12V/4A)
Features:
WFi : 802.11a/b/g/n/ac
Bluetooth: BT5.0
Optional：4G
M. 2 interfaces, USB&PCIE signal compatibility Meg 750
4G: LTE FDD: B1/B3/B7/B8/B20/B28A
3G: WCDMA: B1/B8
2G: GSM: B3/B8
Rugged:
Operating temperature: -20 °C to 60 °C
Store Temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing
IP65 (Front Panel)
Water Resistance (Front Panel)
IP-X5 : Dust Resistance
Certification
CE, CCC, FCC
Warranty:
- 36-Months warranty on all ONERugged branded products
- 1-year warranty on all accessories including battery
- ONERugged units already sold to clients will carry the 36 Months warranty
- No physical damage is covered under warranty, including water damage
- Any non-branded ONERugged products will carry the standard 1 Year warranty
Industrial Panel PC P15R
Adapter
PPC hook assembly
WiFi antenna
