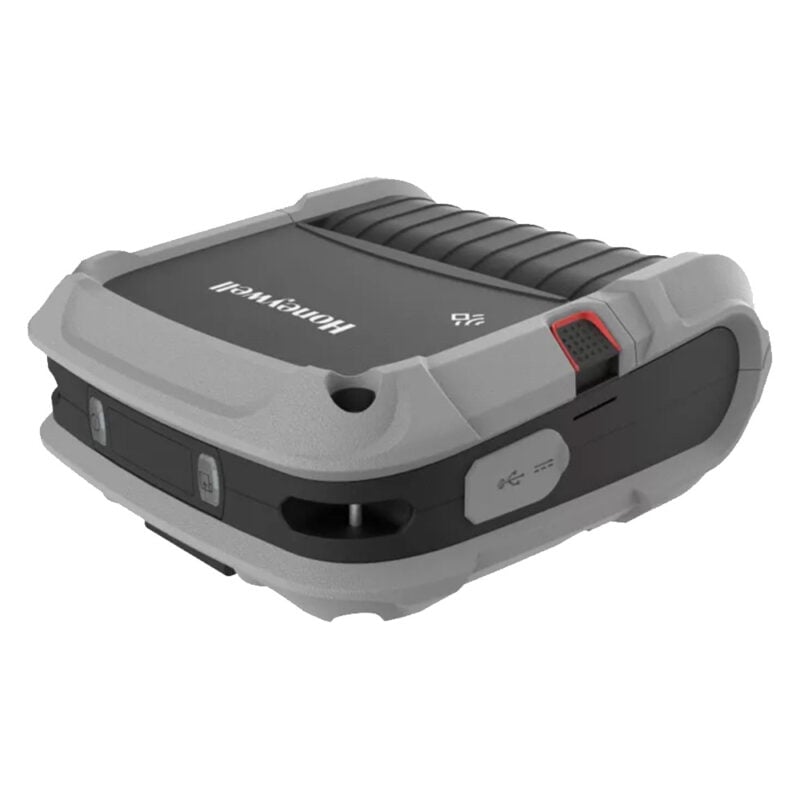

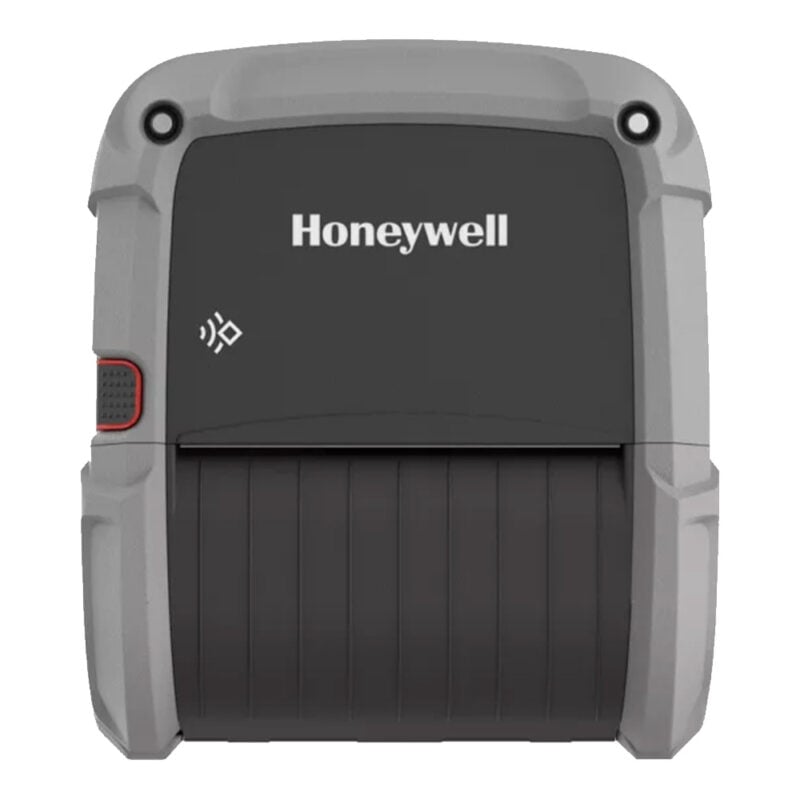

Honeywell RP4f Mobile Printer
RFQ
- Print width: 1.89in/48mm
- Print speed: Upto 25-125mm per second
- Durability: IP54 rated for dust and liquid protection
- Battery Capacity: 2500mAh removable lithium-ion battery
- Bluetooth specification 5.0
- USB On-The-Go ports
- Direct thermal printing of barcodes, text and graphics
RFQ
Secure Payment
Dimensions: 187 mm x 164
mm x 77 mm
Weight: 1.02 kg (with battery, no media)
Method: Direct Thermal
Resolution: 203 dpi (8 dots / mm)
Print Speed: Up to 5 inch (127 mm)
per second
Print Length: 991 mm (39 in)
Maximum Print Width:
RP4f: 104 mm (4.1 in)
Memory: 256MB RAM, 4GB ROM
Media Roll Width:
RP4f: 51 mm (2.0 in) to 111 mm (4.4 in)
Media Types: Tags, receipt paper, labels,
linered and linerless* labels
Maximum Roll Capacity: 58 mm (2.25 in)
outside diameter
Core Sizes: 10.16 mm (0.4 in), 19 mm
(0.75 in), or 25.4 mm (1.0 in) inside diameter
Media Thickness: 0.05 mm (2 mil) to
0.16 mm (6.3 mil)
Batteries: 7.2V Lithium-ion (Li-ion)
RP4f: 4900 mAh with battery age LED
indicator
DC Input (for charging only): 12–15V,
built-in spike and surge protection
Hot-Swappable Battery: Maintains
wireless Bluetooth and Wi-Fi connection
up to 20 seconds
SMART Battery: to SBS Rev 1.1
Environmental Sealing: IP54
Drop Spec: 2 m (6.6 ft)
Tumble Spec: 1,000 cycles at 0.5 m (1.6 ft)
Operating Temperature: -20°C to 55°C
Storage Temperature: -30°C to 65°C
Charging Temperature: 0°C to 40°C
Humidity: 10% – 90%, non-condensing
Barcode Symbologies: All major 1D and 2D
symbologies are supported
Standards Supported: UPC/EAN Shipping
Container, UCC/EAN 128, Serial Shipping
Container, MH10.8 Shipping Label, AIAG
(Shipping parts label), OGMARS, POSTNET,
HIBCC, ISBT 128, GM1724, UPS Shipping
Label, Global Transport Label
Fonts: Monotype font engine
Non-Latin fonts available through WTLE
Graphics: Supports PCX, PNG, GIF and
BMP file formats; other formats supported
with Label Generation Tools
Printer Command Languages: Fingerprint
(FP), Direct Protocol (DP), Intermec Printer
Language (IPL), ZSim2 , DPL, XML-enabled
for SAP AII and Oracle WMS, PDF, CSim,
EZ-Print, C#
Applications/Drivers:InterDriver Windows
printer driver, CUPS driver for Linux,
Honeywell Device Types for SAP, Honeywell
label design and print package
Smart Printing Languages: C# for Printers:
Honeywell Smart Printing Developer
Resource Kit; write apps with .NET
compatible development environments
Configuration and Device Management
Support: PrintSet6 (Windows), Print Set
MC (Android™ and Apple® iOS)
Remote Management: Operational
Intelligence, SOTI® Connect
Software Development Kit: Android 4
and above iOS 11 and above, JAVA based
application
Carriage: Belt clip, heavy-duty velcro
belt mount, shoulder strap, hand strap,
environmental soft case
Mounting: Single mount with wall adapter
plate kit; Multi charger 5-up settlement
room kit; Single vehicle mount with RAM arm;
Four-bay battery / device charging dock kit
warranty:
12-Months Standard Warranty Included
Extended Warranty Available
1x Honeywell RP4f Mobile Printer
