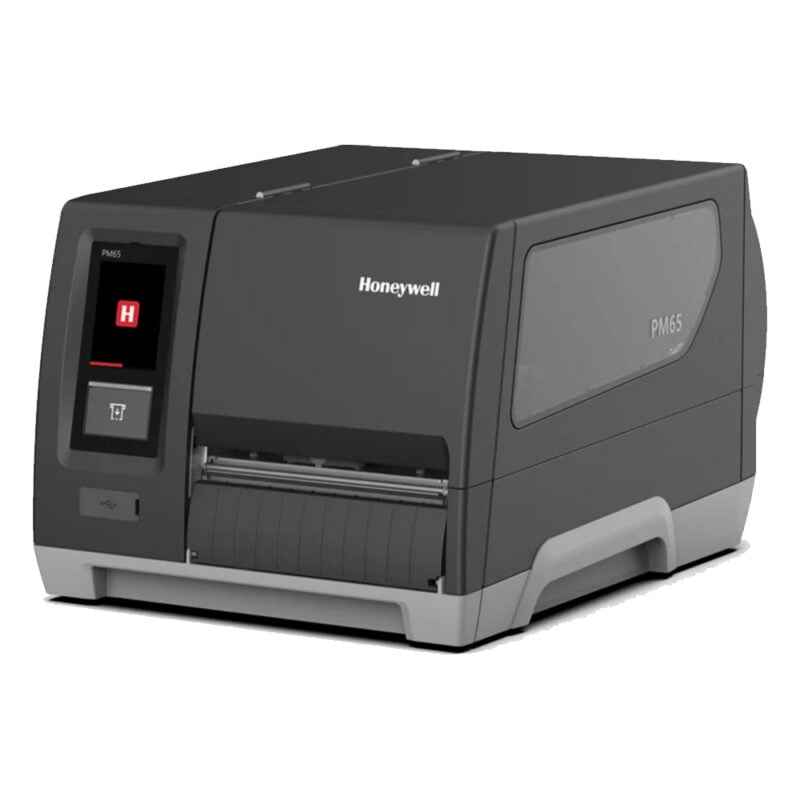

Honeywell PM65 Industrial Printer
RFQ
- Print methods: direct-thermal or thermal-transfer
- Communications: USB 2.0 and RS-232 Serial port, 10/100 Ethernet, USB Host
- Remote Control: Monitor and control printers from a remote computer for real-time support and diagnosis.
- Android Compatibility: Use the Print Set MC application to connect and configure the printer with ease.
- Scalable Design: Supports RFID, parallel, and industrial interfaces for future business needs.
- Easy Maintenance: Rugged all-metal design with tool-free printhead and platen roller replacement.
RFQ
Secure Payment
Dimensions: 483 mm L x 295 mm H x 284 mm W
Weight: 12.1 kg
Print Max. Width:
At 203 dpi: 4.8 m (189 in)
At 300 dpi: 2.2 m (85 in)
Print Resolution
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
Print Speed:
At 203 dpi: 50 mm to 300 mm/s
(2 ips to 12 ips)
At 300 dpi: 50 mm to 250 mm/s
(2 ips to 10 ips)
Memory:
Standard: 512 MB Flash memory, 256 MB
SDRAM, Multi-GB USB memory device
(FAT16/FAT22)
User Partitioning: 256MB
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/ B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1
Bluetooth: 5.2
WLAN: IEEE 802.11 a/b/g/n/ac
Ribbon Specifications:
Type: Wax base, mixed base and resin base
Ribbon Roll Max. PM65: 80 mm (3.15 in),
capacity of 450 m (1,476 ft)
Ribbon Core ID: 25.4 mm (1 in)
Max./Min. Width
PM65: 50.8 mm/172.7 mm (2 in/6.8 in)
Label Roll Max.Diameter:
PM65: 213 mm (8.38 in)
Label Roll Core ID: 38 mm to 76 mm
(1.5 in to 3 in)
Fonts:
Monotype font engine
Non-Latin fonts available through WTLE
Graphics:
Supports PCX, PNG, GIF and
BMP file formats.
Other formats supported with Label
Generation Tools.
Barcode Symbologies:
All major 1D and 2D symbologies are supported
Printer Command Languages:
Fingerprint (FP)
Direct Protocol (DP)
Intermec Printer Language (IPL)3
ZSim2 (ZPL-II), DPL, XML-enabled for SAP®
AII and Oracle® WMS, PDF, C#
Applications/Drivers:
InterDriver Windows® printer driver, CUPS
driver for Linux, Honeywell Device Types
for SAP, Honeywell label design and print
package
Smart Printing Languages:
C# for Printers: Honeywell Smart
Printing Developer Resource Kit; write
apps with .NET- compatible development
environments
Configuration and Device
Management Support
Standard:
PrintSet 5 for printer configuration;
sophisticated web interface for
configuration, upgrades and 1:1
management; Print Set MC (Android and
Apple iOS) for printer configuration
Optional:
Honeywell Operational Intelligence
label taken sensor (LTS), media low sensor,
media supply hub, parallel interface
board Wi-Fi Kit, RFID UHF, applicator
interface board, industrial interface board1,
collapsible rewinder core, cutter, full batch
label/liner rewinder
warranty:
12-Months Standard Warranty Included
1x Honeywell PM65 Industrial Printer
