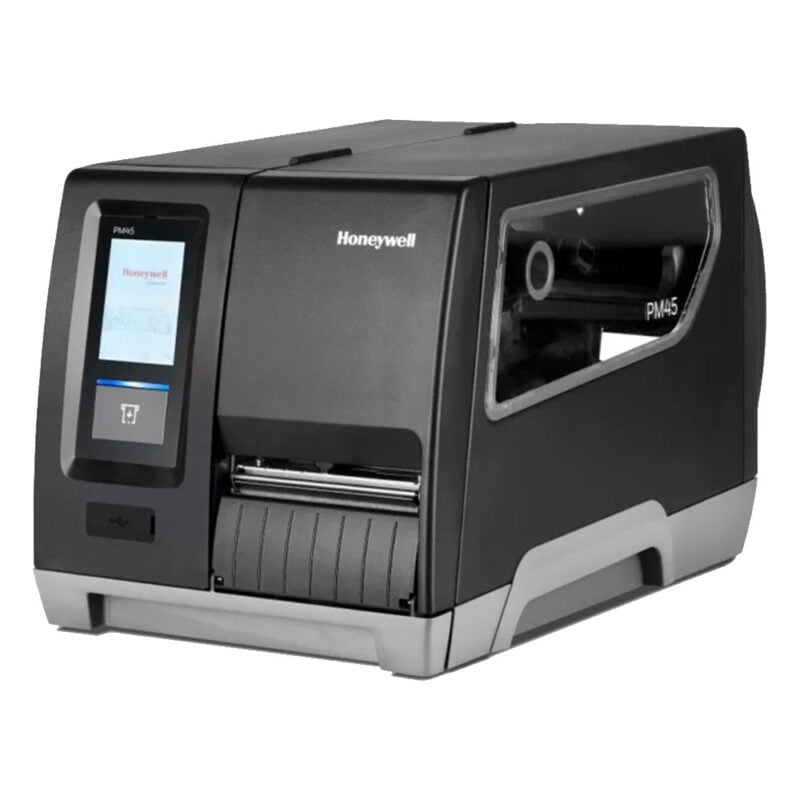

Honeywell PM45 Industrial Printer
RFQ
- Print methods: direct-thermal or thermal-transfer
- Construction: metal frame and plastic enclosures
- Bi-fold media door with large clear window
- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3 Element Energy Equalizer for superior print quality
- Five color LEDs for quick printer status
- Three button keypad
- Communications: USB 2.0 and RS-232 Serial port, 10/100 Ethernet, USB Host
- ENERGY STAR® certified
- Bluetooth® Low Energy
RFQ
Secure Payment
Dimensions: L x H x W: 483 mm x 295mm x 284 mm
(19.0 in x 11.11.6 in x 11.2 in)
Weight: 13.2 kg (29.1lbs)
Max.Width at 203 dpi: 108 mm (4.25 in)
Max.Width at 300 dpi: 105.7 mm (4.17 in)
Max.Width at 406 dpi: 104 (4.09 in)
Max.Width at 600 dpi: 105.6 mm (4.16 in)
Max.length at 203 dpi: 4.8 m (189 in)
Max.length at 300 dpi: 2.2m (85in)
Max.length at 406 dpi: 1.2 m (47.2 in)
Max.length at 600 dpi: 0.55m (22in)
Print Speed:
At 203 dpi: 50-350 mm/s (2-14ips)
At 300 dpi: 50-300 mm/s (2-12ips)
At 406 dpi: 50-250 mm/s (2-10ips)
At 600 dpi: 50-150 mm/s (2-6ips)
Print Resolution:
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
At 600 dpi: 23.6 dots/mm
Memory:
Standard: 512 MB Flash memory, 256 MB
SDRAM, Multi-GB USB memory device
(FAT16/FAT22)
User Partitioning: 256MB
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/ B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1
Bluetooth: 5.0
WLAN: IEEE 802.11 a/b/g/n/ac;
Type: Wax, mid-range and resin
PM45:
PM45 Roll Max. Diameter: 80 mm
(3.15 in), capacity of 450 m (1,476 ft)
Media:
Ribbon Core ID: 25mm (1 in)
Ambient Operating Temperature:
+5°C to +40°C
Storage Temperature: -20°C to +70°C
Operating Humidity:
20 to 85% non-condensing
Storage Humidity:
5 to 90% non-condensing
Barcode Symbologies: All major 1D and 2D
symbologies are supported
Standards Supported: UPC/EAN Shipping
Container, UCC/EAN 128, Serial Shipping
Container, MH10.8 Shipping Label, AIAG
(shipping parts label), OGMARS, POSTNET,
HIBCC, ISBT 128, GM1724, UPS Shipping
Label, Global Transport Label
FONTS
Monotype font engine
Non-Latin fonts available through WTLE
GRAPHICS
Supports PCX, PNG, GIFand
BMP file formats.
Other formats supported with Label
Generation Tools.
Printer Command Languages:
Fingerprint (FP)
Direct Protocol (DP)
Intermec Printer Language (IPL)3
ZSim2 (ZPL-II), DPL, XML-enabled for SAP®
AII and Oracle® WMS, PDF, C#
Applications/Drivers:
InterDriver Windows® printer driver, CUPS
driver for Linux, Honeywell Device Types
for SAP, Honeywell label design and print
package
Smart Printing Languages:
C# for Printers: Honeywell Smart
Printing Developer Resource Kit; write
apps with .NET- compatible development
environments.
Configuration and Device Management
Support (optional):
OpIntel -
PrintSet 5 for printer configuration;
sophisticated web interface for
configuration, upgrades and 1:1
management; Print Set MC (Android™ and
Apple® iOS) for printer configuration via
Bluetooth LE only
Consult the PM Series Accessory Guide
for full details:
Integral self-strip unit with liner takeup,
label taken sensor (LTS), media low sensor,
media supply hub, parallel interface board,
Wi-Fi Kit, RFID UHF, applicator interface
board2, industrial interface board1,2,
collapsible rewinder core, cutter, full batch
label/liner rewinder2
warranty:
12-Months Standard Warranty Included
1x Honeywell PM45 Industrial Printer
