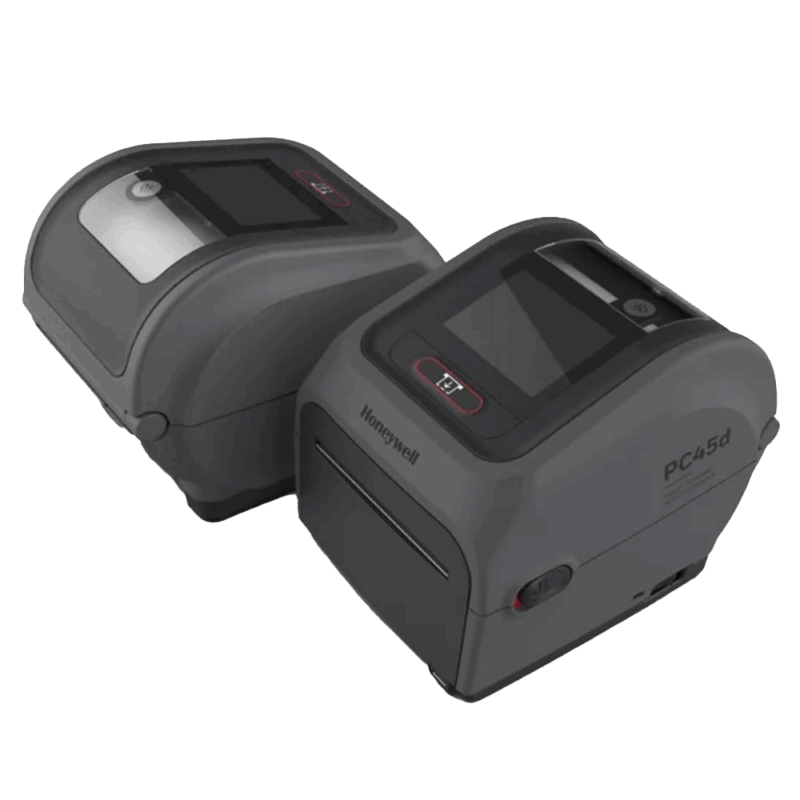

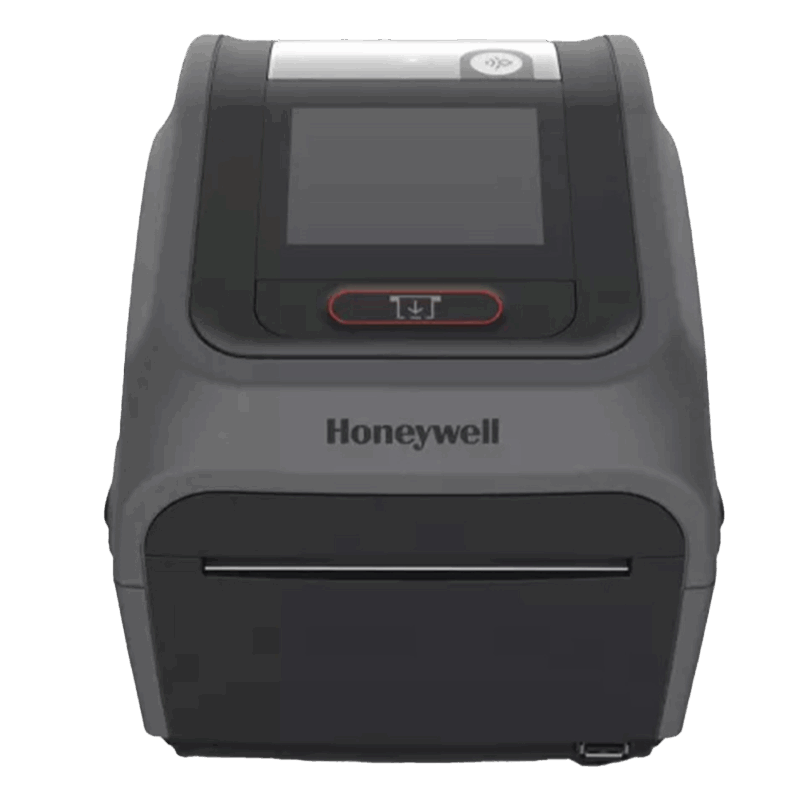

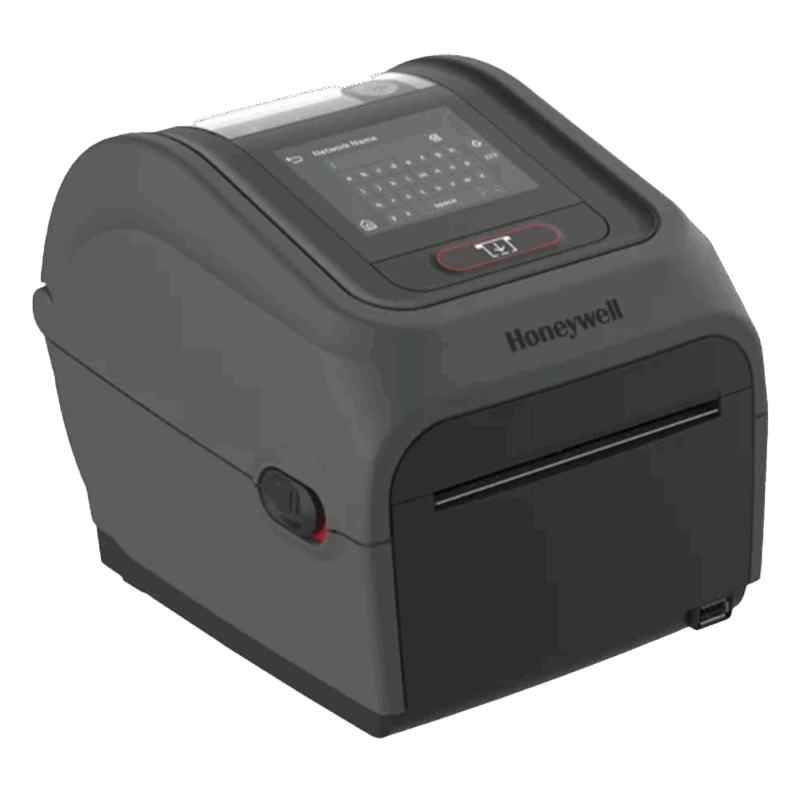

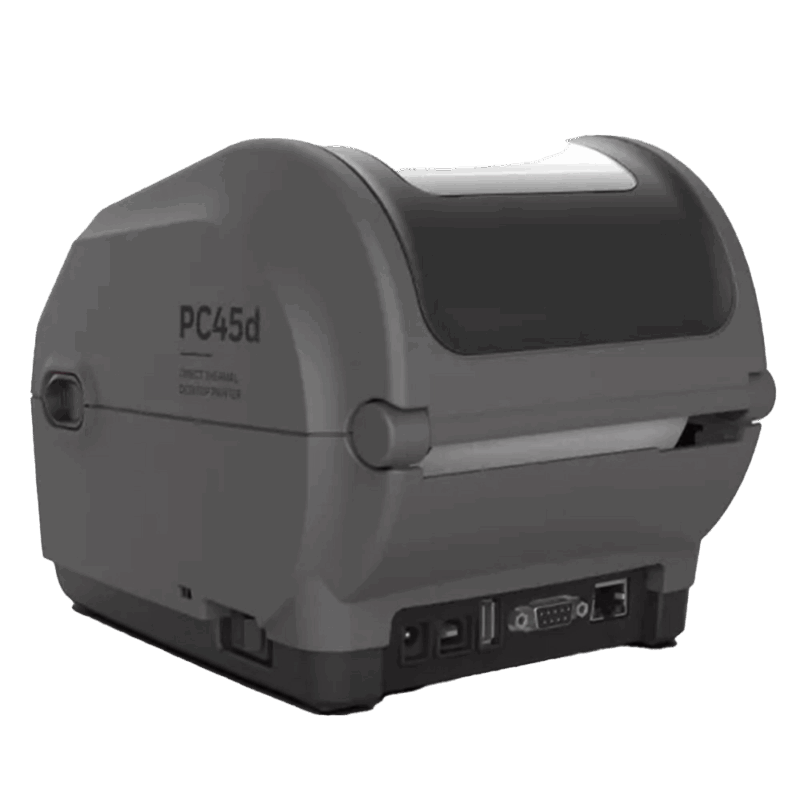

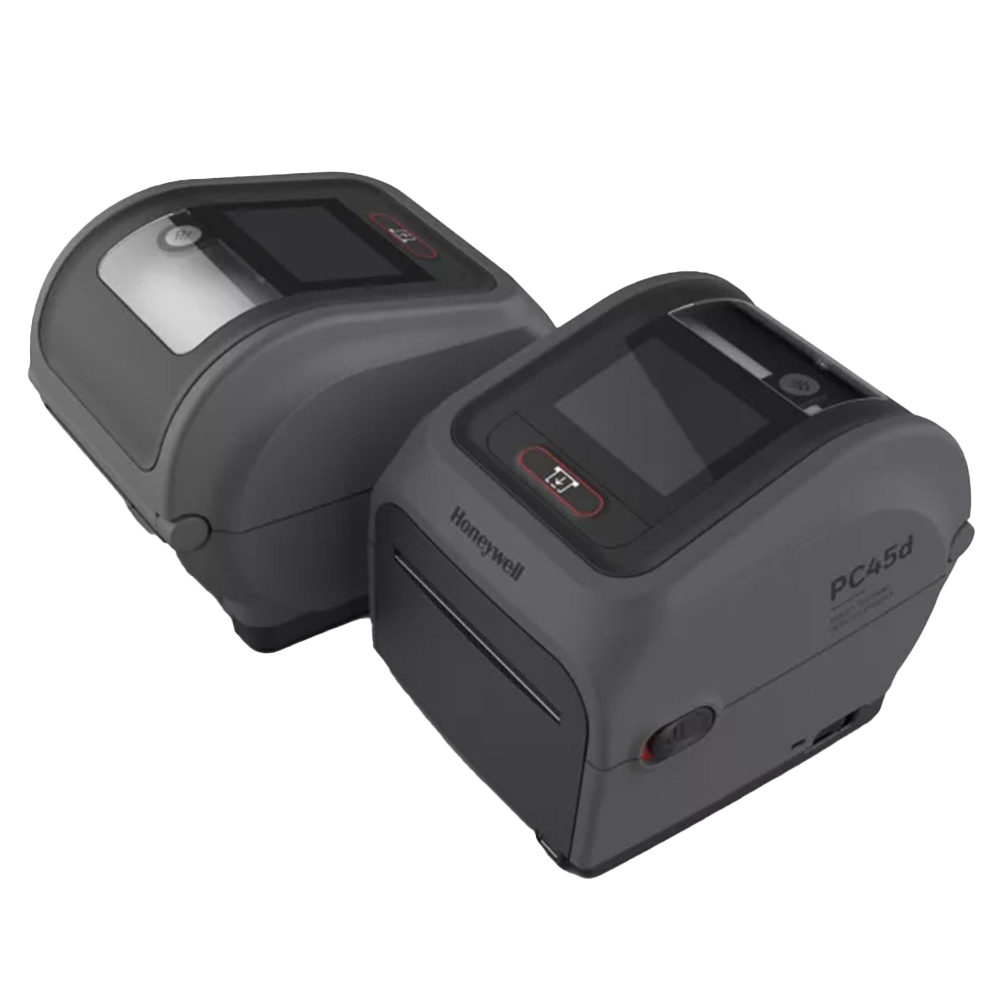

Honeywell PC45D Desktop Printer
RFQ
- Print methods: Direct Thermal Printing
- High resolution, delivers sharp, legible prints for barcodes, text, and graphics.
- USB & Ethernet Connectivity – Easily integrates into networked or standalone setups.
- Supports Honeywell Print DNA for remote management and configuration.
RFQ
Secure Payment
Dimensions:
Direct Thermal:
6.6 in L x 7.1 in W x 8.5 in H
168 mm L x 181.3 mm W x 215.6 H
Weight:
Direct Thermal: 1.8 kg
Max. Width at 203 dpi: 108 mm (4.25 in)
Max Width at 300 dpi: 106 mm (4.12 in)
Print Speed
At 203 dpi: 2ips up to 8ips
At 300 dpi: 2ips up to 6ips
Print Resolution
At 203 dpi: 8 dots/mm
At 300 dpi: 12 dots/mm
Wifi
IEEE 802.11 a/b/g/n/ac/ax
Memory
Standard:
256 Mbyte RAM
512 Mbytes Flash
Maximum Media Width:
118mm (4.65 in)
Maximum Media Roll Capacity:
127 mm (5 in) O.D
Media Core I.D:
12.7 mm (0.5 in), 25.4 mm (1 in),
38.1 mm (1.5 in)
Minimum Media Length:
6.35 mm (0.25 in)
Media Thickness:
0.05 mm (2 mil) to 0.16 mm (6.3 mil)
For optimum print quality and printer
Media Types:
Wristband, tags, receipt paper, linered and
linerless labels, labels with black mark or
gap
Media Sensing:
Gap, notch, black mark, continuous
Other sensing:
Media low
Operating Temperature:
0°C to 45°C (32°F to 113°F)
Storage Temperature: -20°C to 70°C (-4°F to 152°F)
Humidity:
10% to 90%, non-condensing
Printer Command Languages:
Fingerprint (FP), Direct Protocol (DP),
Intermec Printer Language (IPL), ZSim2
(ZPL-II), DPL, XML-enabled for SAP AII
and Oracle WMS, PDF, C#
Applications/Drivers:
InterDriver Windows printer driver, CUPS
driver for Linux, Honeywell Device Types
for SAP, Honeywell label design and print
package
Smart Printing Languages:
C# for Printers: Honeywell Smart Printing
Developer Resource Kit; write apps
with .NET compatible development
environments
Configuration and Device Management
Support (optional):
PrintSet 6 for printer configuration;
sophisticated web interface for
configuration, upgrades and 1:1
management
Regulatory approvals
RoHS Compliant, CE (EN55032 Class B),
FCC Class B, Energy Star 3.2 Qualified
- Self-strip module with LTS
- Media low sensor
- RFID UHF
- Cutter module (linered and linerless)
- External media holder
- Cellular modem
warranty:
12-Months Standard Warranty Included
Extended Warranty Available
1x Honeywell PC45D Desktop Printer
