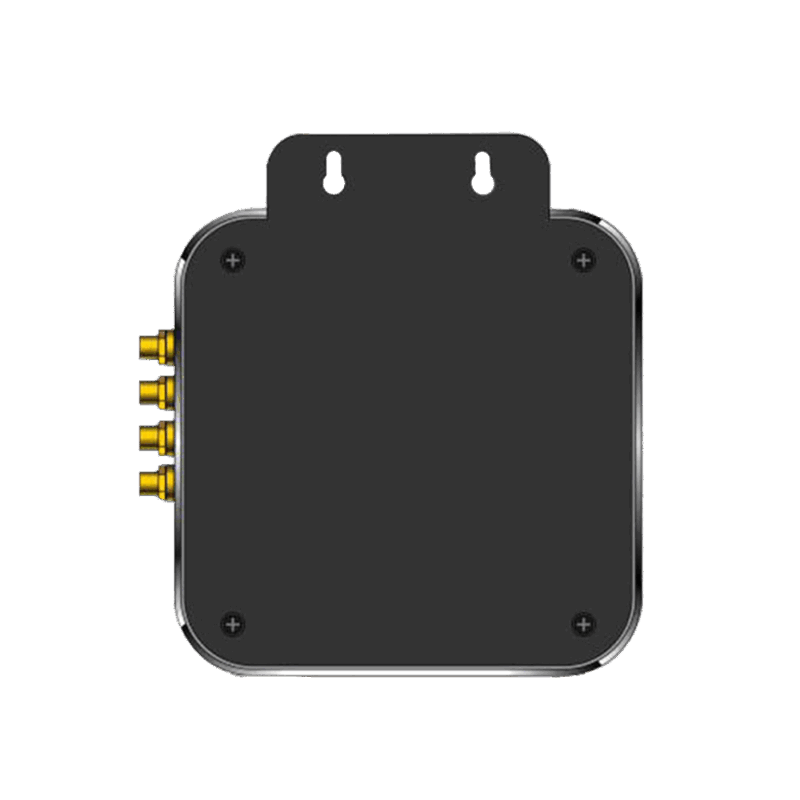

Chainway UR4 Four-Port Fixed UHF RFID reader
RFQ
- UHF RFID (Impinj E710/R2000 Chip)
- DC 12V Power Supply
- UHF RFID (Impinj E710/R2000 Chip)
- Supports RS232/RJ45
- Compatible with Various Types of Antennas
RFQ
Secure Payment
Dimensions:
102.8 mm(L) x 102.8 mm(W) x 28 mm(H)
Weight:
329g (without antenna)
Display:
N/A
Operating System:
N/A
CPU:
N/A
RAM & ROM:
N/A
Battery:
Work Current: 800ma +/-5% @ dc 12v Input
Standby Current: <30mA
Input Voltage: DC 9V – 12V
Network:
N/A
Bluetooth:
N/A
NFC:
N/A
WiFi:
N/A
GPS:
N/A
VoLTE:
N/A

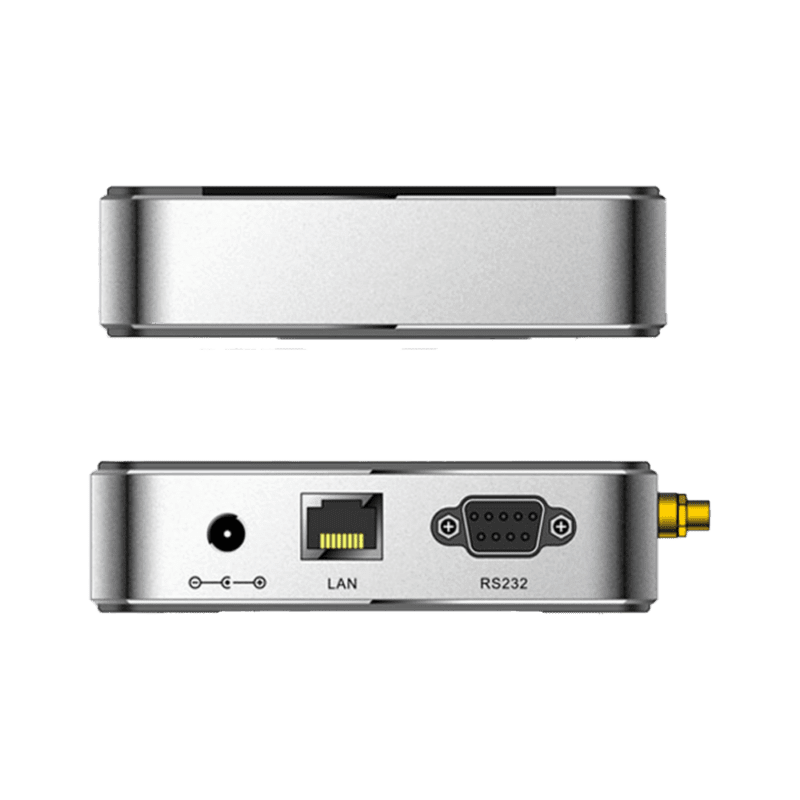

I/O:
Ethernet RJ45 x1
RS-232 x1

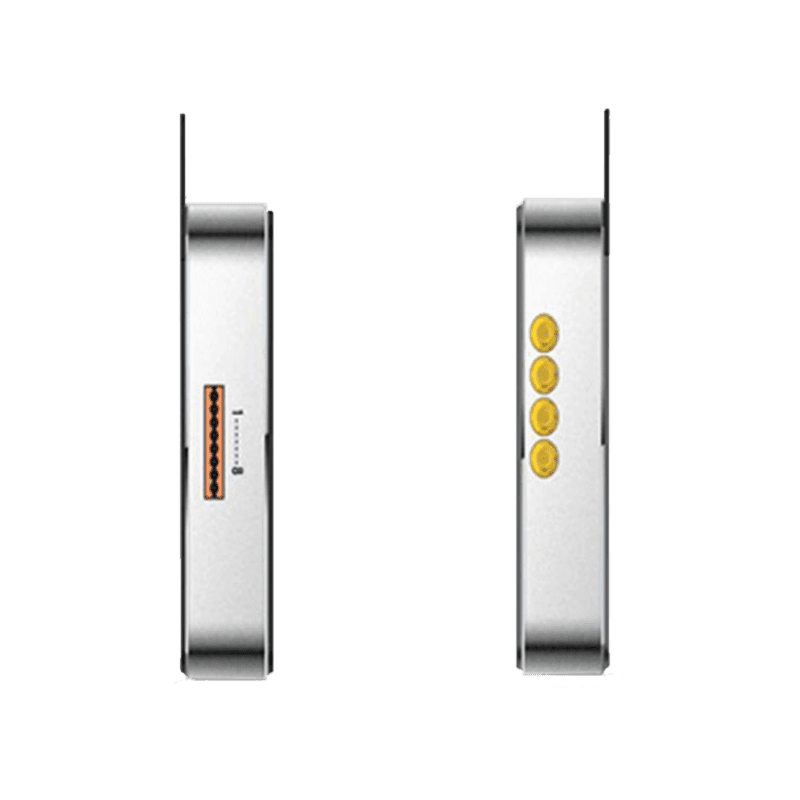

Antenna Port x4
IP Rating:
N/A
Drop Certification:
N/A
Operating Temperature:
-25 °C to 65 °C
Storage Temp: -40 °C to 85 °C
Humidity:
10%- 95%
Optional:
N/A
Biometrics:
N/A
UHF / RFID:
UHF RFID
Engine:
CM710-4 module based on Impinj E710
CM2000-4 module based on Impinj Indy R2000
Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna: Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power:
1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)
Output Power Precision: +/- 1dB
Output Power Flatness: +/- 0.2dB
Receive Sensitivity: < -84 dBm
RSSI: Supported
Ambient Temp Monitor: Supported
Fastest Read Rate: 900+ tags/sec
Antenna Detector: Supported

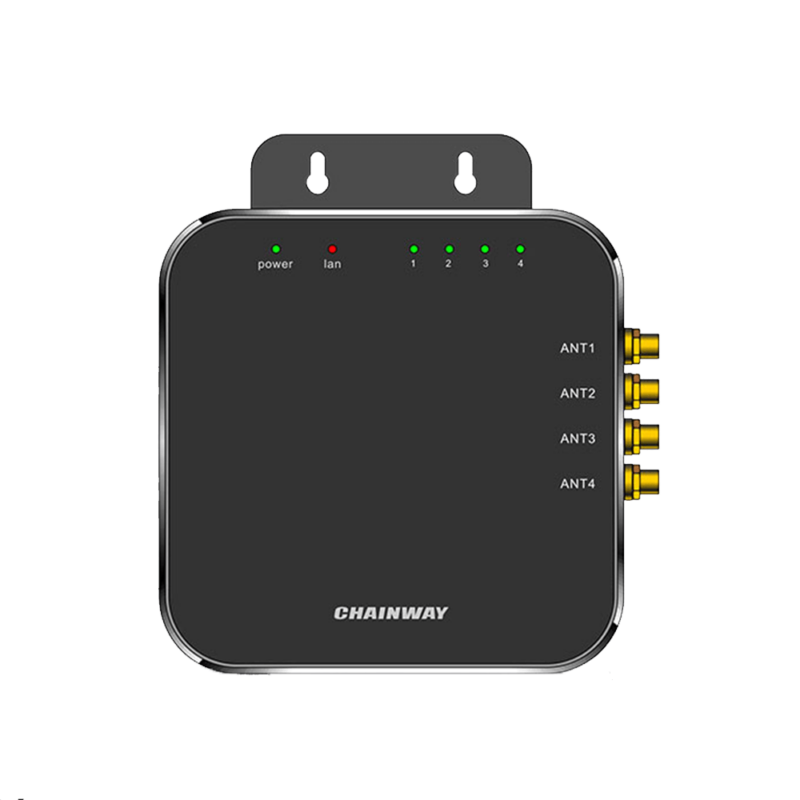

Antenna Port: 4 channel 50Ω SMA port
N/A
N/A
Material: Aluminum alloy
Comm Interface: RS-232/ RJ45
GPIO:
2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical (in reserve)
Baud Rate: 115200 bps
Cooling Mode: Air cooling
Ethernet interface: 10/100 base-T Ethernet (RJ45)
N/A
Warranty:
12 Months Standard Warranty
- Extended Warranty Available
Chainway UR4 Four-Port Fixed UHF RFID reader
Power Adapter
Power Cable
User Manual
