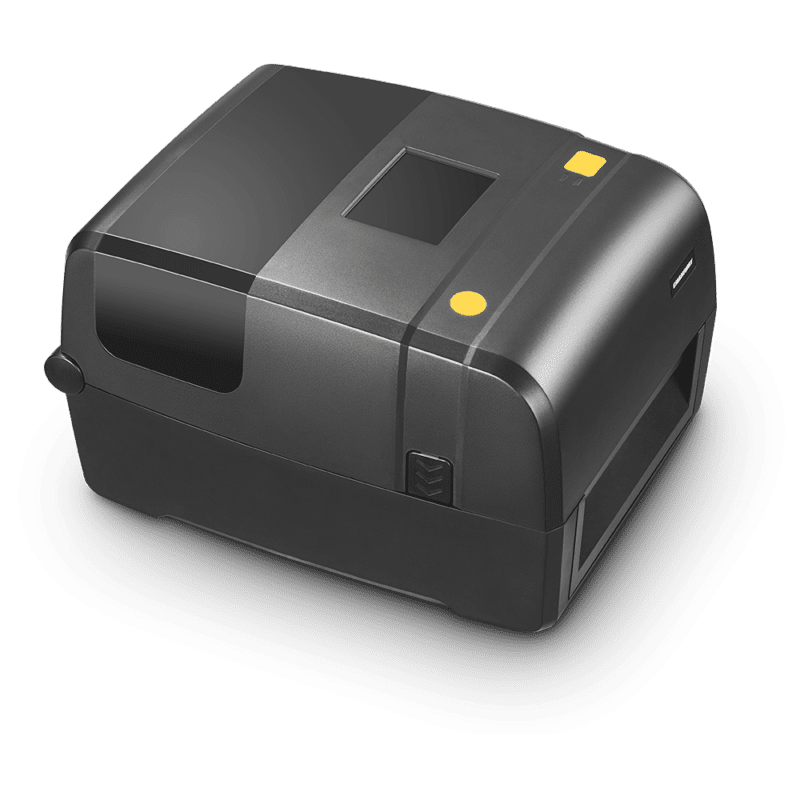

Chainway CP30 RFID Printer
RFQ
Or as low as R249,999,999.75 / month interest-free, using your existing credit card. For orders over R4,000.00.How it works- 3.5” LCD Touch Display
- Maximum Print Speed: 8ips (203dpi)/6ips(300dpi)
- Support Multiple Interface
- Automatic Printhead Resolution Identification
- Thermal Transfer & Direct Thermal
RFQ
Or as low as R249,999,999.75 / month interest-free, using your existing credit card. For orders over R4,000.00.How it worksSecure Payment
Dimensions:
293mm (L) × 237mm (W) × 180mm (H)
Weight:
2.9kg
Printing
Printing Method : Thermal transfer / Direct thermal
Resolution : 203dpi / 300dpi
Max. Printing Speed : 8ips (203dpi) / 6ips (300dpi)
Max. Printing Width : 108mm (203dpi) / 106mm (300dpi)
Max. Printing Length : 2,286mm (203dpi) / 1,524mm (300dpi)
Display
3.5" TFT Color Touch Panel LCD

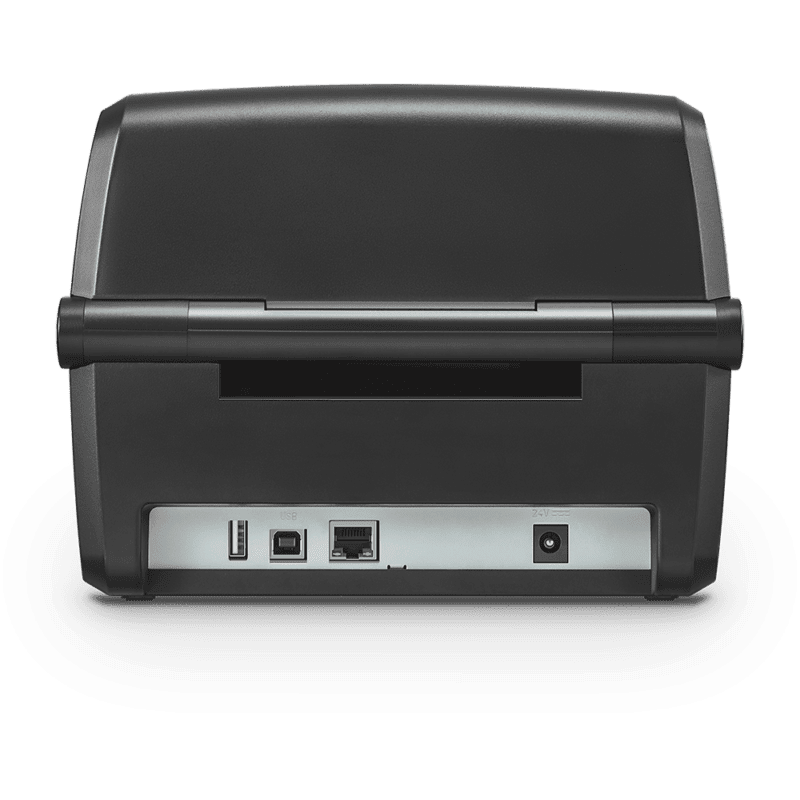

Ports
Standard: USB, USB host, Ethernet
Optional: Wi-Fi, Bluetooth
Power
External AC / DC switching power adapter, AC 100V-240V / DC 24V / 2A / 48W, Peak 8
Performance
RAM : 128MB
Flash : 256MB
UHF RFID
Engine : M6E- NANO Module based on the Impinj E-series chip
Frequency : 920-925MHz / 902-928MHz / 865-868MHz
Protocol : EPCglobal C1G2 (ISO18000-6C)
Media
RFID Tag : UHF RFID, 860-928MHz, EPC C1G2 (ISO18000-6C)
Types : Continuous Paper, Gap, Black Mark, Punched Hole Label
Width : 1'' (25.4) - 4.65'' (118mm), include the liner
Thickness : 0.002'' (60um) - 0.01'' (250um)
Label Roll Diameter : 5'' (127mm) Max
Core Diameter : 0.5'' (12.7mm), 1'' (25.4mm), 1.5'' (38mm)

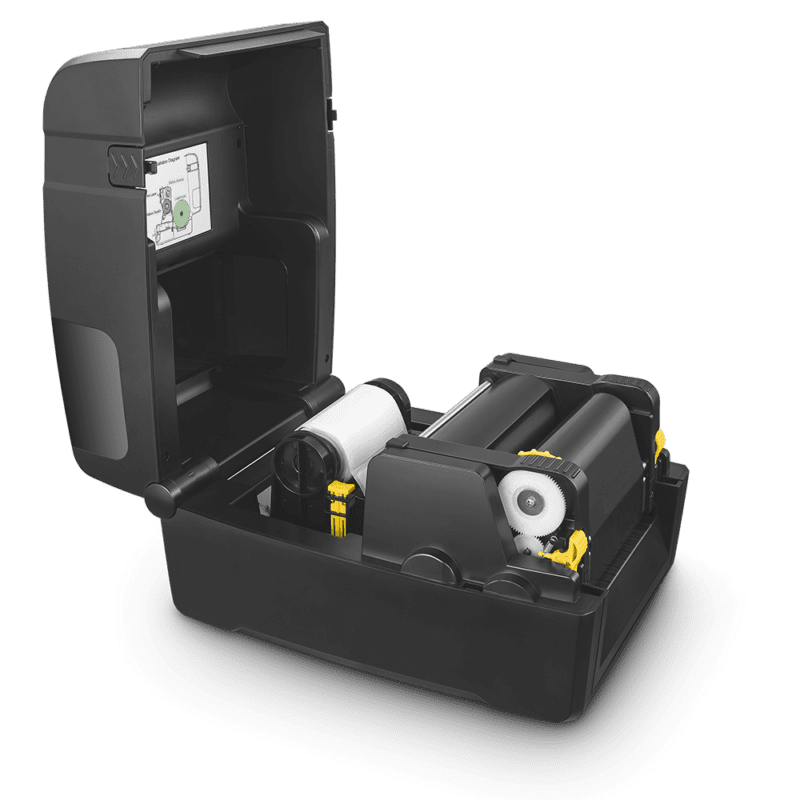

Ribbon
Types : Wax, Wax / Resin, Resin
Width : 1.18'' (30mm) - 4.33'' (110mm)
Length : 984' (300m)
Core Diameter : 1'' (25.4mm)
Operating Temp. : 41℉ (5℃)-104℉ (40℃), humidity 30% to 85% non-condensing
Storage Temp. : -4℉ (-20℃)-122℉ (50℃), humidity 10%-90% non-condensing
Resident Fonts
Bitmap fonts: 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
TTF fonts: Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable
Download Fonts
Bitmap fonts: 90°, 180°, 270° rotatable and 10 times expandable in horizontaland vertical directions
Asian fonts: 16 x 16, 24 x 24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90°, 180°, 270°, rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: 90°, 180°, 270° rotatable
Barcodes
1D: Code 39, Code 93, EAN 8 / 13 (add on 2 & 5), UPC A / E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock
2D: PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code
Graphics
Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download
Label Design Software : Bartender Ultralite
Driver: Windows Vista 7 / 8 / 10, Server 2012 / 2016 / 2018
Peeler Module, Cutter Module, External Label Roll Holder
Bluetooth Module
Wi-Fi Module (Optional)
203dpi TPH (Optional)
Chainway CP30 RFID Printer
AC Adapter
USB Cable
Label and Ribbon Sample
Platen Roller Module
300dpi TPH
12 Months Warranty
