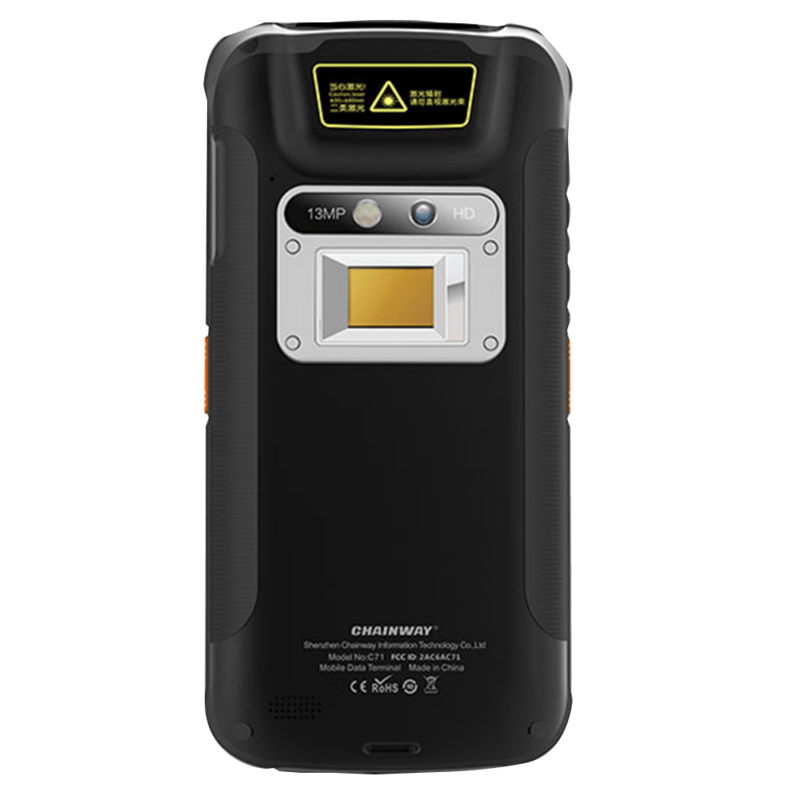

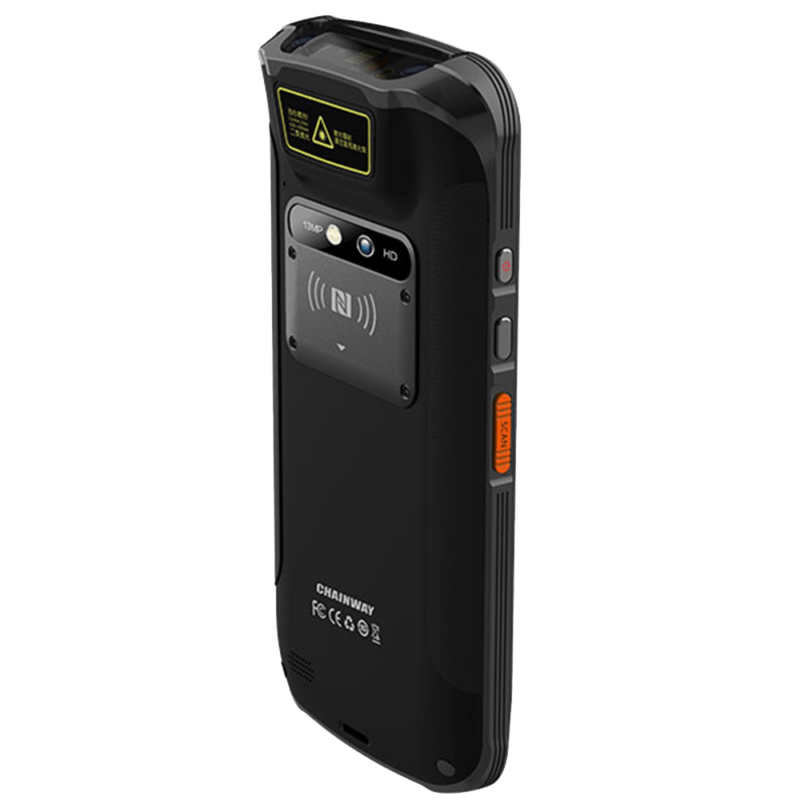

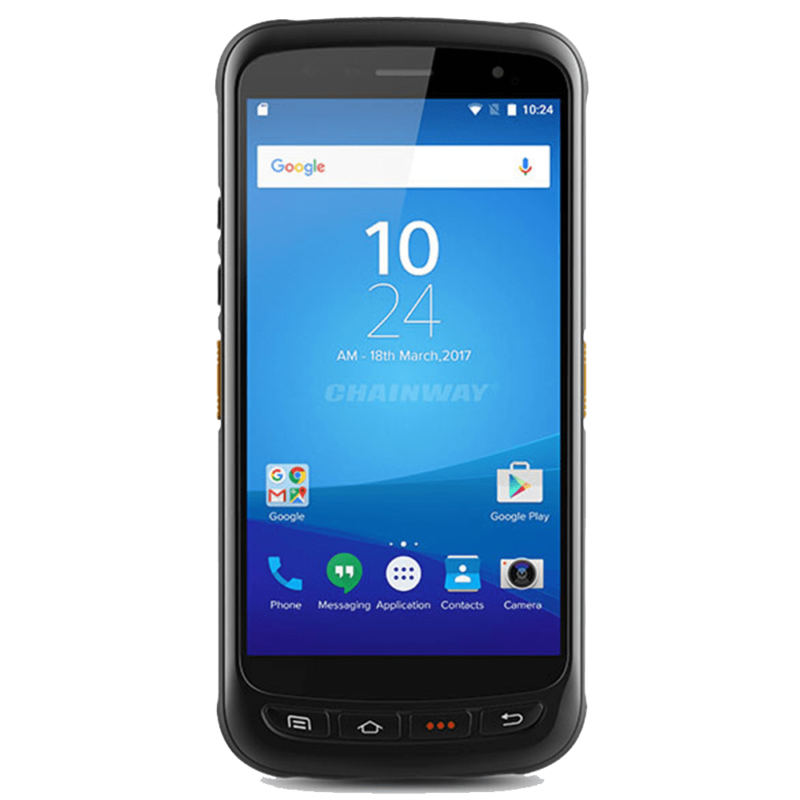

Chainway C71 Rugged Handheld 1D/2D Barcode Scanning
RFQ
- 5.2″ IPS Screen
- Android 13
- 3GB RAM
- 32GB ROM
- 13MP Rear Camera
- 5,000mAh Battery
- Octa-Core Processor
- IP65 & IP67
- 1D/2D Barcode Scanner
- Supports UHF RFID or NFC
- Accessories Available
RFQ
Secure Payment
Dimensions:
164.2 x 78.8 x 17.0 mm
Weight:
88 g
Display:
5.2'' inch
1920 x 1080 Resolution
Multi-touch panel
Gloves and wet hands supported
Operating System:
Android 13
CPU:
CPU : Cortex-A53 2.5
CPU Clock : 2.3 GHz Octa-core
RAM & ROM:
3GB RAM
32GB RAM
Supports up to 128GB Micro SD card
Optional : 4GB + 64GB
Battery:
Main battery: Li-ion, rechargeable, 5000 mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Network:
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
B28B/B34/B38/B39/B40/B41
Bluetooth:
Bluetooth 5.0
NFC:
13.56 MHz
WiFi:
IEEE802.11 a/b/g/n/ac, 2.4G/
GPS:
GPS/AGPS, GLONASS, BeiDou; internal antenna
I/O:
1x Nano SIM card
1x Nano SIM or TF card
1x USB 2.0 : Type-C, OTG,
1x Type-C headphones supported
Audio : 2 microphones 1 for noise cancellation；1 speaker；receiver
Keypad : 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
IP Rating:
IP65 / IP67 per IEC sealing specifications
Drop Certification:
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Operating Temperature:
4 °F to 122 °F / -20 °C to 50 °C
Humidity:
5% RH - 95% RH non condensing
Optional:
1D Linear Scanner
Zebra: SE965; Honeywell: N4313
2D Imager Scanner
Zebra : SE4710 / SE4750 / SE4750MR; Honeywell: N6603
1D Symbologies:
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies :
LPDF417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Biometrics:
Iris Recognition (Optional, alternative to front Camera)
Rate< 150 ms
Range : 20-40 cm
FAR : 1/10000000
Protocol : ISO/IEC 19794-6，GB/T 20979-2007
*This function is optional
*Iris is alternative to front camera
UHF / RFID:
Frequency : 13.56 MHz
Protocol ISO14443A/B, ISO15693
Range 3-8 cm
Note*This function is optional; HF RFID alternative to NFC.
Warranty:
12 Months Standard Warranty
- Extended Warranty Available
Chainway C71 Rugged Handheld 1D/2D Barcode Scanning
USB Cable
AC Adapter
User Manual
