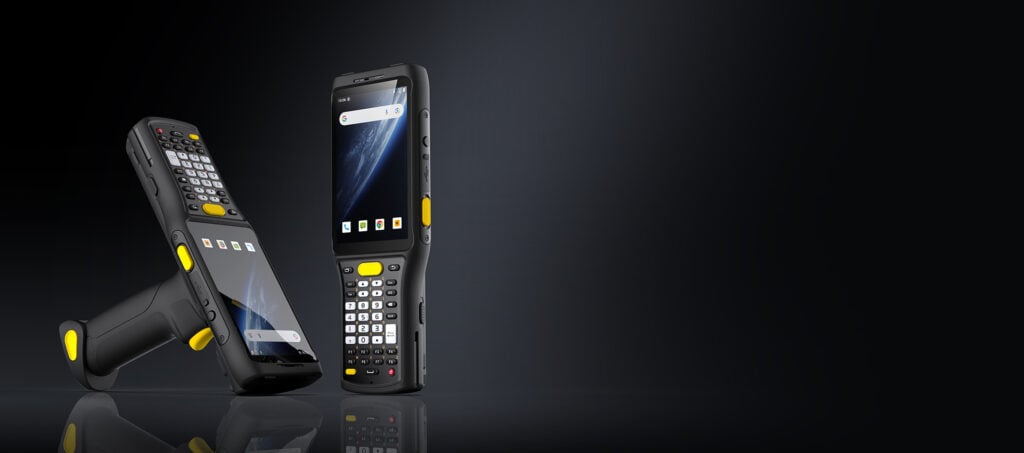

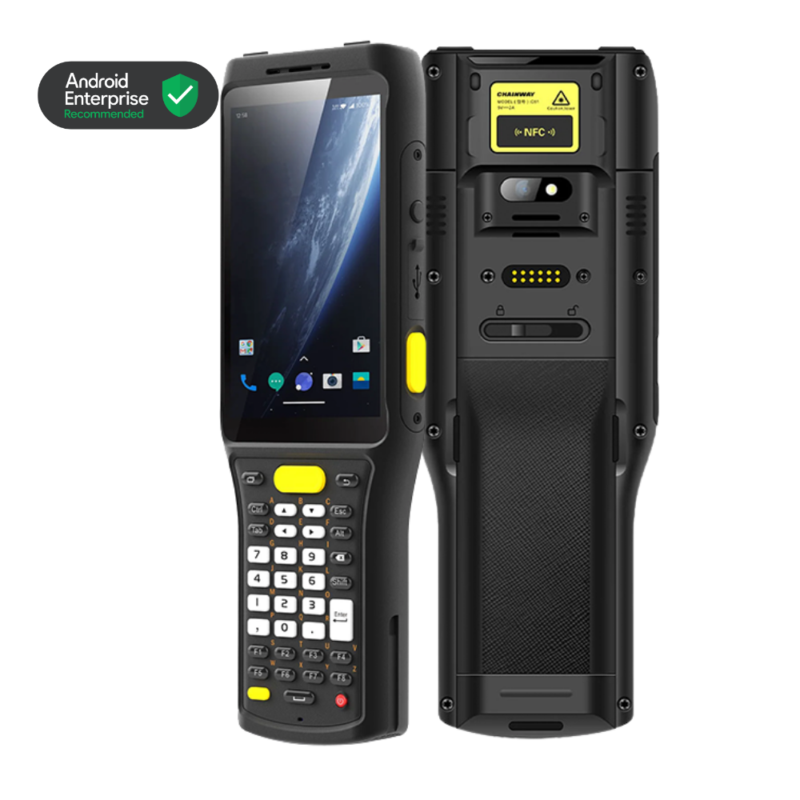

Chainway C63 Rugged Handheld Mobile Computer
RFQ
- 4.0″ HD IPS Screen
- Android 13
- 4G Connectivity
- Octa-Core Processor
- RAM 4GB
- ROM 64GB
- 6700mAh Removable Battery
- 1D/2D Scanner (Optional)
- 13MP Rear Camera
- NFC
RFQ
Secure Payment
Dimensions:
203.50 x 72.8 x 34.8mm (Without Pistol Grip)

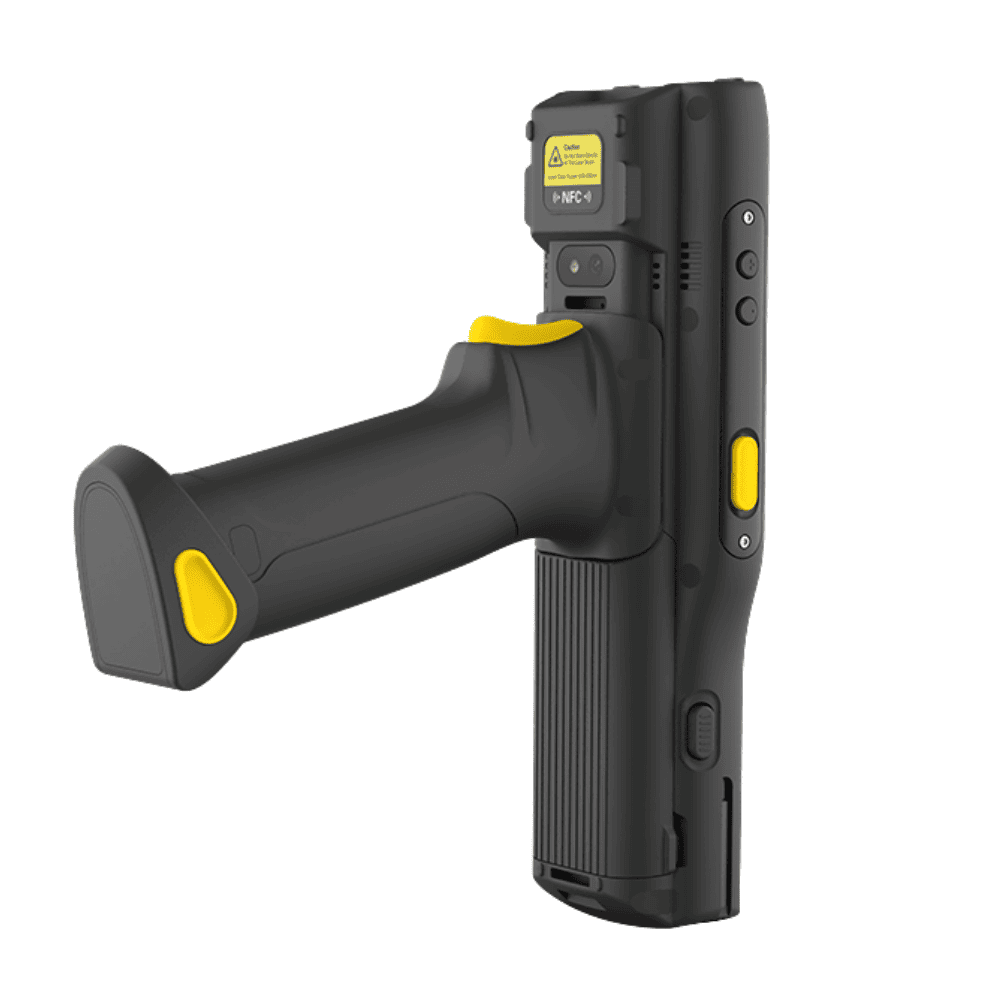

203.50 x 72.8 x 160mm (With Pistol Grip)
Weight:
385g
Display:
4.0" HD IPS Screen
800 x 480 Resolution
Multi-Touch Panel
Wet Hands & Gloves Supported
Operating System:
Android 13
CPU:
CPU: Qualcomm
CPU Clock: Octa-Core 2.0GHz
RAM & ROM:
RAM: 4GB
RAM Type: UFS
ROM: 64GB
ROM Type: UFS
Expansion: Supports up to 256GB SD Card
Battery:
6700mAh Removable Main Battery
Supports QC3.0 and RTC
Supports Hot Swap Battery Backup
Network:
GSM: 850/900/DCS1800/PCS1900
3G: CDMAEVDO: BC0
WCDMA: 850/900/1700/1900/2100 MHz
TD-SCDMA: A/F (B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B28/B38/B39/B40/B41
Bluetooth:
5.1
NFC:
Frequency: 13.56 MHz
WiFi:
802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120, 124,128,132,136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC
GPS:
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
VoLTE:
Supports Vo-LTE HD video voice call
I/O:
1 x slot for Micro SIM card, 1 x slot for TF card
1 x USB Type-C, USB 3.1, OTG
1 x For Noise Cancellation
1 x Speaker
1 x Receiver
2 scan keys + 2 volume keys + 1 user-defined key
IP Rating:
IP67
Drop Certification:
MIL-STD-810H
Operating Temperature:
Operating Temp: -22°F to 122°F/-30°C to 50°C
Storage Temp: -40°F to 158°F/-40°C to 70°C
Humidity:
5% RH - 95% RH non condensing
Biometrics:
N/A
UHF / RFID:
Optional:
Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Antenna
Optional: Barcode Scanner
Zebra: SE4710/SE4750/SE4850/SE5500/SE5800
Honeywell: N6603/N6803FR
CM60
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
ESD: ±15 KV air discharge, ±8 KV conductive discharge Communication
Warranty:
12 Months Standard Warranty
Extended Warranty Available
1 x MC51 Device
1 x Lanyard
1 x Handstrap
1 x Type-C Cable
1 x Charging Adapter
